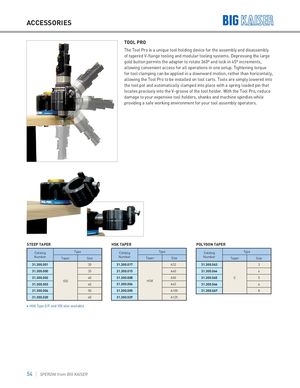

TOOL PRO
The Tool Pro is a unique tool holding device for the assembly and disassembly
of tapered V-flange tooling and modular tooling systems. Depressing the large
gold button permits the adapter to rotate 360º and lock in 45º increments,
allowing convenient access for all operations in one setup. Tightening torque
for tool clamping can be applied in a downward motion, rather than horizontally,
allowing the Tool Pro to be installed on tool carts. Tools are simply lowered into
the tool pot and automatically clamped into place with a spring loaded pin that
locates precisely into the V-groove of the tool holder. With the Tool Pro, reduce
damage to your expensive tool holders, shanks and machine spindles while
providing a safe working environment for your tool assembly operators.
STEEP TAPER HSK TAPER POLYGON TAPER
| Catalog | Ty | pe | Catalog Type |
| Number | Taper | Size | Number Taper Size |
| 31.300.001 | 30 | 31.300.017 A32 | |
| 31.300.000 | 35 | 31.300.015 A40 | |
| 31.300.002 | 40 | 31.300.008 A50 | |
| 31.300.003 | ISO | 45 | HSK 31.300.006 A63 |
| 31.300.004 | 50 | 31.300.005 A100 | |
| 31.300.020 | 60 | 31.300.029 A125 |
| Catalog | Type |
| Number | Taper Size |
| 31.300.063 | 3 |
| 31.300.064 | 4 |
| 31.300.065 | C 5 |
| 31.300.066 | 6 |
| 31.300.067 | 8 |
- HSK Type E/F and VDI also available
