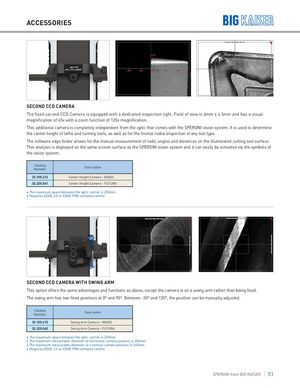

SECOND CCD CAMERA

The fixed second CCD Camera is equipped with a dedicated inspection light. Field of view is 6mm x 4.5mm and has a visual magnification of 45x with a zoom function of 120x magnification. This additional camera is completely independent from the optic that comes with the SPERONI vision system. It is used to determine the center height of lathe and turning tools, as well as for the frontal radial inspection of any tool type. The software edge finder allows for the manual measurement of radii, angles and distances on the illuminated cutting tool surface. This analysis is displayed on the same screen surface as the SPERONI vision system and it can easily be activated via the symbols of the vision system.

• The maximum space between the optic carrier is 220mm
• Requires EDGE 2.0 or EDGE PRO software control

SECOND CCD CAMERA WITH SWING ARM

This option offers the same advantages and functions as above, except the camera is on a swing arm rather than being fixed. The swing arm has two fixed positions at 0º and 90º. Between -30º and 120º, the position can be manually adjusted.

• The maximum space between the optic carrier is 220mm
• The maximum measurable diameter at horizontal camera position is 356mm
• The maximum measurable diameter at a vertical camera position is 240mm
• Requires EDGE 2.0 or EDGE PRO software control
