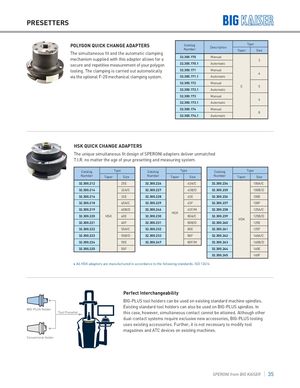

POLYGON QUICK CHANGE ADAPTERS Catalog Description Number

The simultaneous fit and the automatic clamping

mechanism supplied with this adapter allows for a32.300.170Manual
secure and repetitive measurement of your polygon32.300.170.1Automatic
tooling. The clamping is carried out automatically32.300.171Manual
via the optional F-20 mechanical clamping system.32.300.171.1Automatic
32.300.172Manual
32.300.172.1Automatic
32.300.173Manual
32.300.173.1Automatic
32.300.174Manual
32.300.174.1Automatic

Type Taper Size 3

4

C 5

6

8

HSK QUICK CHANGE ADAPTERS

The unique simultaneous fit design of SPERONI adapters deliver unmatched

T.I.R. no matter the age of your presetting and measuring system.

Catalog Type Catalog Type Catalog Type

NumberTaper SizeNumberTaper SizeNumberTaper Size
32.300.21225E32.300.22663A/C32.300.234100A/C
32.300.21432A/C32.300.22763B/D32.300.235100B/D
32.300.21632E32.300.22863E32.300.236100E
32.300.21840A/C32.300.22963F32.300.237100F
32.300.21940B/D32.300.24663F/M32.300.238125A/C
HSK
32.300.220HSK 40E32.300.23080A/C32.300.239125B/D
HSK
32.300.22140F32.300.23180B/D32.300.240125E
32.300.22250A/C32.300.23280E32.300.241125F
32.300.22350B/D32.300.23380F32.300.242160A/C
32.300.22450E32.300.24780F/M32.300.243160B/D
32.300.22550F32.300.244160E

32.300.245 160F

  • All HSK adapters are manufactured in accordance to the following standards: ISO 12614

BIG-PLUS Holder Tool Presetter

Conventional Holder

Perfect Interchangeability

BIG-PLUS tool holders can be used on existing standard machine spindles.

Existing standard tool holders can also be used on BIG-PLUS spindles. In

this case, however, simultaneous contact cannot be attained. Although other

dual-contact systems require exclusive new accessories, BIG-PLUS tooling

uses existing accessories. Further, it is not necessary to modify tool

magazines and ATC devices on existing machines.
