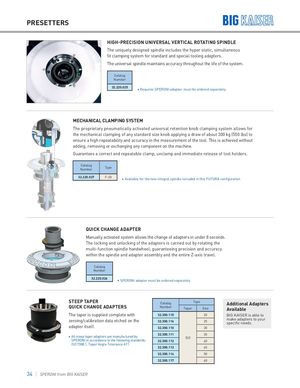

HIGH-PRECISION UNIVERSAL VERTICAL ROTATING SPINDLE

The uniquely designed spindle includes the hyper static, simultaneous

fit clamping system for standard and special tooling adapters. The universal spindle maintains accuracy throughout the life of the system. Catalog Number 32.220.025 Requires SPERONI adapter; must be ordered separately

MECHANICAL CLAMPING SYSTEM

The proprietary pneumatically activated universal retention knob clamping system allows for VDIHSKISOC3 ÷ C10

the mechanical clamping of any standard size knob applying a draw of about 300 kg (550 lbs) to

ensure a high repeatability and accuracy in the measurement of the tool. This is achieved without

adding, removing or exchanging any component on the machine. Guarantees a correct and repeatable clamp, unclamp and immediate release of tool holders. Catalog Type Number

32.220.027 F-20 Available for the new integral spindle included in this FUTURA configuration

QUICK CHANGE ADAPTER

Manually activated system allows the change of adapters in under 8 seconds.

The locking and unlocking of the adapters is carried out by rotating the

multi-function spindle handwheel; guaranteeing precision and accuracy

within the spindle and adapter assembly and the entire Z-axis travel. Catalog Number 32.220.026

SPERONI adapter must be ordered separately

STEEP TAPER		Type	Additional Adapters
QUICK CHANGE ADAPTERS	Catalog

	Number	Taper	Size	Available
The taper is supplied complete with	32.300.115		20	BIG KAISER is able to
zeroing/calibration data etched on the				make adapters to your
	32.300.116		25	specific needs.
adapter itself.
	32.300.110		30
• All steep taper adapters are manufactured by	32.300.111		35
		ISO
SPERONI in accordance to the following standards:	32.300.112		40

ISO 7388.1, Taper Angle Tolerance AT1 32.300.113 45
