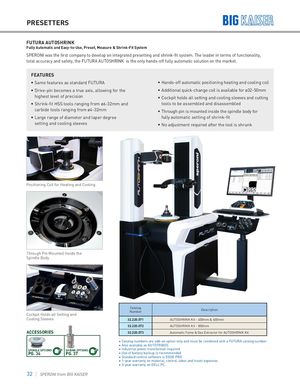

FUTURA AUTOSHRINK

Fully Automatic and Easy-to-Use, Preset, Measure & Shrink-Fit System SPERONI was the first company to develop an integrated presetting and shrink-fit system. The leader in terms of functionality, total accuracy and safety, the FUTURA AUTOSHRINK is the only hands-off fully automatic solution on the market.

FEATURES

• Same features as standard FUTURA
• Hands-off automatic positioning heating and cooling coil
• Drive-pin becomes a true axis, allowing for the
• Additional quick-change coil is available for ø32-50mm

highest level of precision Cockpit holds all setting and cooling sleeves and cutting

• Shrink-fit HSS tools ranging from ø6-32mm and tools to be assembled and disassembled

carbide tools ranging from ø4-32mm Through pin is mounted inside the spindle body for

• Large range of diameter and taper degree fully automatic setting of shrink-fit

setting and cooling sleeves No adjustment required after the tool is shrunk

Positioning Coil for Heating and Cooling

Through Pin Mounted Inside the Spindle Body

Cockpit Holds all Setting and

• Catalog numbers are add-on option only and must be combined with a FUTURA catalog number
• Also available as AUTOTRIBOS

• Standard control software is EDGE PRO
• 1-year warranty on material, control, labor and travel expenses
• 3-year warranty on DELL PC
