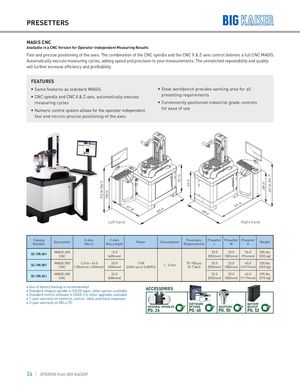

MAGIS CNC
Available in a CNC Version for Operator-Independent Measuring Results
Fast and precise positioning of the axes. The combination of the CNC spindle and the CNC X & Z-axis control delivers a full CNC MAGIS. Automatically execute measuring cycles, adding speed and precision to your measurements. The unmatched repeatability and quality will further increase efficiency and profitability.
FEATURES
- Same features as standard MAGIS
- Steel workbench provides working area for all
| CNC spindle and CNC X & Z-axis, automatically execute | presetting requirements |
| measuring cycles | • Conveniently positioned industrial grade controls |
| Numeric control system allows for the operator independent, | for ease of use |
fast and micron-precise positioning of the axes 6 47. 48.4
6 31.8 47. 60.4 48.4
Left hand Right hand
Catalog X-Axis Z-Axis Pneumatic Presetter Presetter Presetter
Description Power Consumption Weight
| Number | Max ø | Max Length | Requirements | L | W | H | |||
| 32.105.041 | MAGIS 400 | 16.0 | 33.5 | 23.0 | 36.0 | 505 lbs |
| CNC | (400mm) | (852mm) | (583mm) | (916mm) | (230 kg) | ||||
| 32.105.051 | MAGIS 500 | -2.0 to +14.0 20.0 | 110V 70-100 psi | 33.5 | 23.0 | 40.0 | 550 lbs | ||
| 1…2 cfm | |||||||||
| CNC | (-50mm to +350mm) (500mm) | (60Hz up to 5 AMPs) (5-7 bar) | (852mm) | (583mm) | (1017mm) | (250 kg) | |||
| 32.105.061 | MAGIS 600 | 24.0 | 33.5 | 23.0 | 44.0 | 595 lbs | |||
| CNC | (600mm) | (852mm) | (583mm) | (1119mm) | (270 kg) |
- Use of battery backup is recommended ACCESSORIES
- Standard integral spindle is ISO 50 taper; other options available 31.8
- Standard control software is EDGE 2.0; other upgrades available 60.4
- 1-year warranty on material, control, labor and travel expenses
| • 3-year warranty on DELL PC | SOFTWARE | BATTERY | ||
| INTEGRAL SPINDLES PG. 26 | OPTIONS PG. 40 | ADAPTERS PG. 50 | BACKUP PG. 52 |
