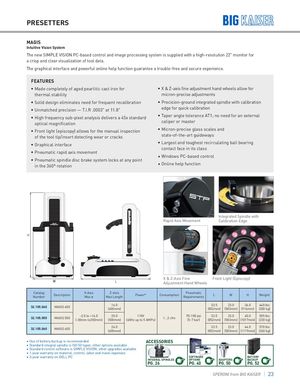

MAGIS
Intuitive Vision System
The new SIMPLE VISION PC-based control and image processing system is supplied with a high-resolution 22" monitor for
a crisp and clear visualization of tool data. The graphical interface and powerful online help function guarantee a trouble-free and secure experience.
FEATURES
- Made completely of aged pearlitic cast iron for
- X & Z-axis fine adjustment hand wheels allow for
thermal stability micron-precise adjustments
- Solid design eliminates need for frequent recalibration
- Precision-ground integrated spindle with calibration
| Unmatched precision — T.I.R .0003" at 11.8" | edge for quick calibration |
| High frequency sub-pixel analysis delivers a 45x standard | • Taper angle tolerance AT1; no need for an external |
| optical magnification | caliper or master |
| Front light (episcopy) allows for the manual inspection | • Micron-precise glass scales and |
| of the tool tip/insert detecting wear or cracks | state-of-the-art guideways |
| Graphical interface | • Largest and toughest recirculating ball bearing |
contact face in its class
- Pneumatic rapid axis movement
- Windows PC-based control
- Pneumatic spindle disc brake system locks at any point
in the 360º rotation Online help function
Integrated Spindle with
Rapid Axis Movement Calibration Edge
X & Z-Axis Fine Front Light (Episcopy)
WW L Adjustment Hand Wheels
Catalog X-Axis Z-Axis Pneumatic
Description Power* Consumption L W H Weight
Number Max ø Max Length Requirements
| 32.105.040 | 16.0 | 33.5 | 23.0 | 36.0 | 440 lbs | |||
| MAGIS 400 | ||||||||
| (400mm) | (852mm) | (583mm) | (916mm) | (200 kg) | ||||
| 32.105.050 | -2.0 to +14.0 20.0 | 110V 70-100 psi | 33.5 | 23.0 | 40.0 | 505 lbs | ||
| MAGIS 500 | 1…2 cfm | |||||||
| (-30mm to350mm) (500mm) | (60Hz up to 5 AMPs) (5-7 bar) | (852mm) | (583mm) | (1017mm) | (230 kg) | |||
| 32.105.060 | 24.0 | 33.5 | 23.0 | 44.0 | 570 lbs | |||
| MAGIS 600 | ||||||||
| (600mm) | (852mm) | (583mm) | (1119mm) | (260 kg) |
- Use of battery backup is recommended ACCESSORIES
- Standard integral spindle is ISO 50 taper; other options available
- Standard control software is SIMPLE VISION; other upgrades available
- 1-year warranty on material, control, labor and travel expenses
| • 3-year warranty on DELL PC | SOFTWARE | BATTERY | ||
| INTEGRAL SPINDLES | OPTIONS | ADAPTERS | BACKUP |
