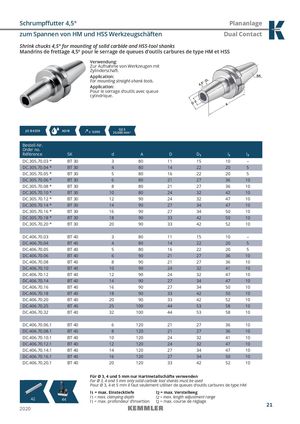

Schrumpff utter 4,5° Plananlage
zum Spannen von HM und HSS Werkzeugschäften Dual Contact
Shrink chucks 4,5° for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage 4,5° pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application: For mounting straight-shank tools.
Application: Pour le serrage d’outils avec queue cylindrique.
JIS B 6339 AD/B G2,5
≤ 0,003 25.000 min-1
| Bestell-Nr. Order no. Référence | SK | d | A | D | D1 | l1 | l2 |
| DC.305.70.03 | BT 30 | 3 | 80 | 11 | 15 | 10 | – |
| DC.305.70.04 | BT 30 | 4 | 80 | 14 | 22 | 20 | 5 |
| DC.305.70.05 | BT 30 | 5 | 80 | 16 | 22 | 20 | 5 |
| DC.305.70.06 | BT 30 | 6 | 80 | 21 | 27 | 36 | 10 |
| DC.305.70.08 | BT 30 | 8 | 80 | 21 | 27 | 36 | 10 |
| DC.305.70.10 | BT 30 | 10 | 80 | 24 | 32 | 42 | 10 |
| DC.305.70.12 | BT 30 | 12 | 90 | 24 | 32 | 47 | 10 |
| DC.305.70.14 | BT 30 | 14 | 90 | 27 | 34 | 47 | 10 |
| DC.305.70.16 | BT 30 | 16 | 90 | 27 | 34 | 50 | 10 |
| DC.305.70.18 | BT 30 | 18 | 90 | 33 | 42 | 50 | 10 |
| DC.305.70.20 | BT 30 | 20 | 90 | 33 | 42 | 52 | 10 |
| DC.406.70.03 | BT 40 | 3 | 80 | 11 | 15 | 10 | – |
| DC.406.70.04 | BT 40 | 4 | 80 | 14 | 22 | 20 | 5 |
| DC.406.70.05 | BT 40 | 5 | 80 | 16 | 22 | 20 | 5 |
| DC.406.70.06 | BT 40 | 6 | 90 | 21 | 27 | 36 | 10 |
| DC.406.70.08 | BT 40 | 8 | 90 | 21 | 27 | 36 | 10 |
| DC.406.70.10 | BT 40 | 10 | 90 | 24 | 32 | 41 | 10 |
| DC.406.70.12 | BT 40 | 12 | 90 | 24 | 32 | 47 | 10 |
| DC.406.70.14 | BT 40 | 14 | 90 | 27 | 34 | 47 | 10 |
| DC.406.70.16 | BT 40 | 16 | 90 | 27 | 34 | 50 | 10 |
| DC.406.70.18 | BT 40 | 18 | 90 | 33 | 42 | 50 | 10 |
| DC.406.70.20 | BT 40 | 20 | 90 | 33 | 42 | 52 | 10 |
| DC.406.70.25 | BT 40 | 25 | 100 | 44 | 53 | 58 | 10 |
| DC.406.70.32 | BT 40 | 32 | 100 | 44 | 53 | 58 | 10 |
| DC.406.70.06.1 | BT 40 | 6 | 120 | 21 | 27 | 36 | 10 |
| DC.406.70.08.1 | BT 40 | 8 | 120 | 21 | 27 | 36 | 10 |
| DC.406.70.10.1 | BT 40 | 10 | 120 | 24 | 32 | 41 | 10 |
| DC.406.70.12.1 | BT 40 | 12 | 120 | 24 | 32 | 47 | 10 |
| DC.406.70.14.1 | BT 40 | 14 | 120 | 27 | 34 | 47 | 10 |
| DC.406.70.16.1 | BT 40 | 16 | 120 | 27 | 34 | 50 | 10 |
| DC.406.70.20.1 | BT 40 | 20 | 120 | 33 | 42 | 52 | 10 |
Für Ø 3, 4 und 5 mm nur Hartmetallschäfte verwenden For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used Pour Ø 3, 4 et 5 mm il faut seulement utiliser de queues d‘outils carbures de type HM
42 l1 = max. clamping depth l2 = max. length adjustment range
44 l1 = max. profondeur d’insertion l2 = max. course de réglage
