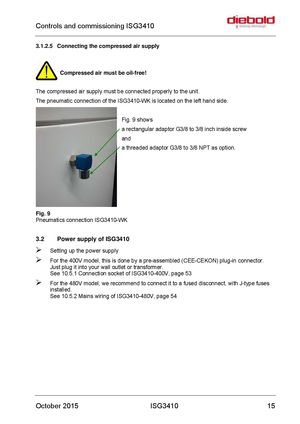

3.1.2.5 Connecting the compressed air supply

Compressed air must be oil-free!

The compressed air supply must be connected properly to the unit. The pneumatic connection of the ISG3410-WK is located on the left hand side.

Fig. 9 shows a rectangular adaptor G3/8 to 3/8 inch inside screw and a threaded adaptor G3/8 to 3/8 NPT as option.

Fig. 9 Pneumatics connection ISG3410-WK

3.2 Power supply of ISG3410

• Setting up the power supply
• For the 400V model, this is done by a pre-assembled (CEE-CEKON) plug-in connector. Just plug it into your wall outlet or transformer. See 10.5.1 Connection socket of ISG3410-400V, page 53
• For the 480V model, we recommend to connect it to a fused disconnect, with J-type fuses installed. See 10.5.2 Mains wiring of ISG3410-480V, page 54
