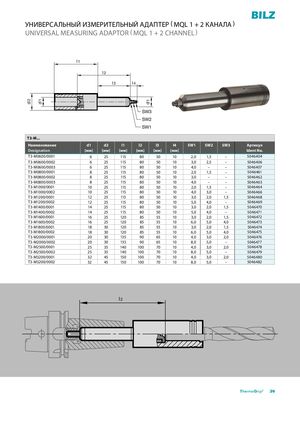

УНИВЕРСАЛЬНЫЙ ИЗМЕРИТЕЛЬНЫЙ АДАПТЕР ( MQL 1 + 2 КАНАЛА )
UNIVERSAL MEASURING ADAPTOR ( MQL 1 + 2 CHANNEL )
l 1 l2 l3 l4
SW3 SW2 SW1
| T3-M... | ||||||||||
| Наименование Designation | d1 [мм] | d2 [мм] | l1 [мм] | l2 [мм] | l3 [мм] | l4 [мм] | SW1 | SW2 | SW3 | Артикул Ident No. |
| T3-M0600/0001 | 6 | 25 | 115 | 80 | 50 | 10 | 2,0 | 1,5 | – | 5046404 |
| T3-M0600/0002 | 6 | 25 | 115 | 80 | 50 | 10 | 3,0 | 2,5 | – | 5046406 |
| T3-M0600/0003 | 6 | 25 | 115 | 80 | 50 | 10 | 4,0 | – | – | 5046407 |
| T3-M0800/0001 | 8 | 25 | 115 | 80 | 50 | 10 | 2,0 | 1,5 | – | 5046461 |
| T3-M0800/0002 | 8 | 25 | 115 | 80 | 50 | 10 | 3,0 | – | – | 5046462 |
| T3-M0800/0003 | 8 | 25 | 115 | 80 | 50 | 10 | 4,0 | – | – | 5046463 |
| T3-M1000/0001 | 10 | 25 | 115 | 80 | 50 | 10 | 2,0 | 1,5 | – | 5046464 |
| T3-M1000/0002 | 10 | 25 | 115 | 80 | 50 | 10 | 4,0 | 3,0 | – | 5046466 |
| T3-M1200/0001 | 12 | 25 | 115 | 80 | 50 | 10 | 3,0 | 2,0 | 1,5 | 5046468 |
| T3-M1200/0002 | 12 | 25 | 115 | 80 | 50 | 10 | 5,0 | 4,0 | – | 5046469 |
| T3-M1400/0001 | 14 | 25 | 115 | 80 | 50 | 10 | 3,0 | 2,0 | 1,5 | 5046470 |
| T3-M1400/0002 | 14 | 25 | 115 | 80 | 50 | 10 | 5,0 | 4,0 | – | 5046471 |
| T3-M1600/0001 | 16 | 25 | 120 | 85 | 55 | 10 | 3,0 | 2,0 | 1,5 | 5046472 |
| T3-M1600/0002 | 16 | 25 | 120 | 85 | 55 | 10 | 6,0 | 5,0 | 4,0 | 5046473 |
| T3-M1800/0001 | 18 | 30 | 120 | 85 | 55 | 10 | 3,0 | 2,0 | 1,5 | 5046474 |
| T3-M1800/0002 | 18 | 30 | 120 | 85 | 55 | 10 | 6,0 | 5,0 | 4,0 | 5046475 |
| T3-M2000/0001 | 20 | 30 | 135 | 90 | 65 | 10 | 4,0 | 3,0 | 2,0 | 5046476 |
| T3-M2000/0002 | 20 | 30 | 135 | 90 | 65 | 10 | 8,0 | 5,0 | – | 5046477 |
| T3-M2500/0001 | 25 | 35 | 140 | 100 | 70 | 10 | 4,0 | 3,0 | 2,0 | 5046478 |
| T3-M2500/0002 | 25 | 35 | 140 | 100 | 70 | 10 | 8,0 | 5,0 | – | 5046479 |
| T3-M3200/0001 | 32 | 45 | 150 | 100 | 70 | 10 | 4,0 | 3,0 | 2,0 | 5046480 |
| T3-M3200/0002 | 32 | 45 | 150 | 100 | 70 | 10 | 8,0 | 5,0 | – | 5046482 |
