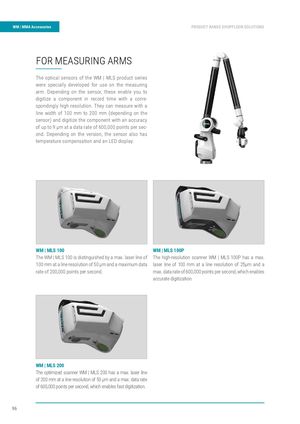

FOR MEASURING ARMS

The optical sensors of the WM | MLS product series were specially developed for use on the measuring arm. Depending on the sensor, these enable you to digitize a component in record time with a correspondingly high resolution. They can measure with a line width of 100 mm to 200 mm (depending on the sensor) and digitize the component with an accuracy of up to 9 μm at a data rate of 600,000 points per second. Depending on the version, the sensor also has temperature compensation and an LED display.

accurate digitization.

WM | MLS 200 The optimized scanner WM | MLS 200 has a max. laser line of 200 mm at a line resolution of 50 μm and a max. data rate of 600,000 points per second, which enables fast digitization.
