CORE D

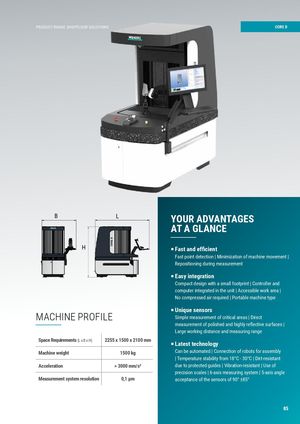

WENZEL CORE D

OPTICAL MEASUREMENT AT PRODUCTION CYCLE SPEED

structure, developed and manufactured in WENZEL’s

FEATURES

P The CORE is the optimal solution for automated measurement of components in-line or at-line P Robust construction ensures its use in production environment P Fully integrated optical sensors measure complex workpiece geometries in a reasonable time P Possibility of tactile measurement when optical methods reach their physical limits P Automatic change between tactile and optical measurement by the WM | HS hybrid sensor

FIELDS OF APPLICATION

Typical applications of CORE can be found in a wide variety of industries, for example in tool and mold making, prototype construction, the automotive industry, reverse engineering and above all in medical technology and aviation. CORE is used to measure turbine blades, joints, implants and vehicle parts.

Knee and hip prostheses Turbine blades Pump

PRODUCT RANGE SHOPFLOOR SOLUTIONS

B L

H

MACHINE PROFILE

CORE D

YOUR ADVANTAGES

AT A GLANCE

Fast and effi cient

P

Fast point detection | Minimization of machine movement | Repositioning during measurement

P Easy integration

Compact design with a small footprint | Controller and computer integrated in the unit | Accessible work area | No compressed air required | Portable machine type

P Unique sensors

Simple measurement of critical areas | Direct measurement of polished and highly refl ective surfaces | Large working distance and measuring range

P

| Temperature stability from 18°C - 30°C | Dirt-resistant precision scales | 6-axis measuring system | 5-axis angle
