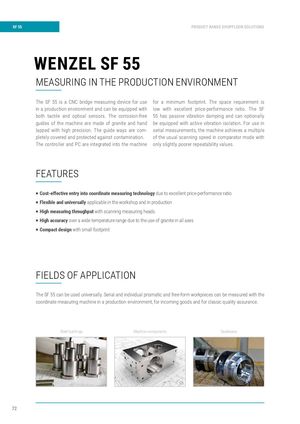

WENZEL SF 55

MEASURING IN THE PRODUCTION ENVIRONMENT

The SF 55 is a CNC bridge measuring device for usefor a minimum footprint. The space requirement is
in a production environment and can be equipped withlow with excellent price-performance ratio. The SF
both tactile and optical sensors. The corrosion-free55 has passive vibration damping and can optionally
guides of the machine are made of granite and handbe equipped with active vibration isolation. For use in
lapped with high precision. The guide ways are com-serial measurements, the machine achieves a multiple
pletely covered and protected against contamination.of the usual scanning speed in comparator mode with
The controller and PC are integrated into the machineonly slightly poorer repeatability values.

FEATURES P Cost-effective entry into coordinate measuring technology due to excellent price-performance ratio P Flexible and universally applicable in the workshop and in production P High measuring throughput with scanning measuring heads

P High accuracy over a wide temperature range due to the use of granite in all axes P Compact design with small footprint

FIELDS OF APPLICATION

The SF 55 can be used universally. Serial and individual prismatic and free-form workpieces can be measured with the coordinate measuring machine in a production environment, for incoming goods and for classic quality assurance.

Steel bushings Machine components Gearboxes

H

B L

MACHINE PROFILE

Space Requirements (L x B x H) 1730 x 1440 x 2555 mm Machine weight 980 kg Max. Workpiece weight 200 kg Measuring ranges 500 x 500 x 500 mm*

YOUR ADVANTAGES

AT A GLANCE

P High fl exibility

Bellows covers to protect against contamination | Data compatibility with other WENZEL systems | Height-adjustable operating arm

P High mechanical precision

Granite base | Hand-lapped base plate (DIN 876/0) | Air bearing guide elements in all axes

P Low operating costs

Low air consumption | Renishaw sensors | Reliable and inexpensive spare parts

P Versatile sensor options

Swapable sensor systems | 3-axis scanning | Optical sensor technology

P Suitable for automation and integration

into the line

WENZEL-Automation-Interface (WAI) | Good accessibility | WM I SYS Analyzer
