SF Series PRODUCT RANGE SHOPFLOOR SOLUTIONS

THE NEW WENZEL SHOPFLOOR SERIES

CMMs FOR USE IN THE WORKSHOP

WENZEL’s workshop-suited CMMs are universally applicable. The WENZEL SF 55, SF 87 and SF 1210 coordinate measuring machines can be used to measure both series and individual individual parts in the direct production environment, in incoming goods and in classical quality assurance. The intelligent and compact design is suitable for a wide range of applications in the production environment, especially in the cutting and forming industry. WENZEL SF 55 The SF 55 is a CNC bridge measuring device for use in a production environment and can be equipped with both tactile and optical sensors. The corrosion-free guides of the machine are made of granite and hand lapped with high precision. The guide ways are completely covered and protected against contamination. The controller and PC are integrated into the machine for a minimum foo print. The space requirement is low with excellent price-performance ratio. The SF 55 has passive vibration damping and can optionally be equipped with active vibration isolation.

WENZEL SF 87 The new SF 87 coordinate measuring machine is the universal measuring machine for the production environment. The SF 87 requires little fl oor space and offers an optimized measuring volume of 800x700 x 00 mm. This makes it ideal for a large part of the metal cutting and forming industry. The machine concept offers a very good price-performance ratio with low space requirements. High traversing speeds and accelerations ensure high productivity. The combination of powerful probes and optical sensors leads to a considerable increase in effi ciency in your measuring and testing process.

PRODUKTSEGMENT COMPUTERTOMOGRAPHIE PRODUKTSEGMENT SHOPFLOOR-LÖSUNGENPRODUCT RANGE SHOPFLOOR SOLUTIONS PRODUCT RANGE SHOPFLOOR SOLUTIONS SF BaureiheexaCTexaCTSF SeriesSF Series M M

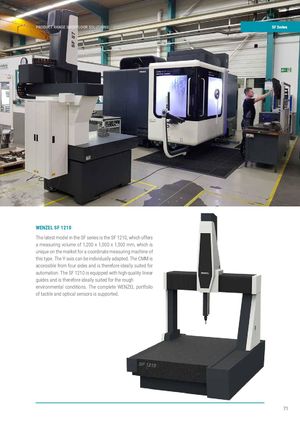

WENZEL SF 1210 The latest model in the SF series is the SF 1210, which offers a measuring volume of 1,200 x 1,000 x 1,500 mm, which is unique on the market for a coordinate measuring machine of this type. The Y-axis can be individually adapted. The CMM is accessible from four sides and is therefore ideally suited for automation. The SF 1210 is equipped with high-quality linear guides and is therefore ideally suited for the rough environmental conditions. The complete WENZEL portfolio of tactile and optical sensors is supported.
