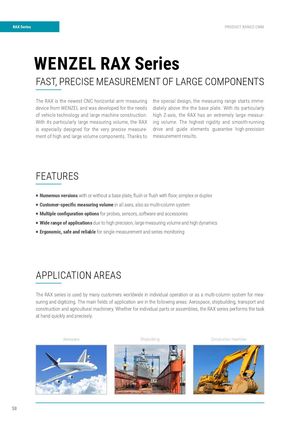

RAX Series PRODUCT RANGE CMM WENZEL RAX Series FAST, PRECISE MEASUREMENT OF LARGE COMPONENTS The RAX is the newest CNC horizontal arm measuring the special design, the measuring range starts imme- device from WENZEL and was developed for the needs diately above the the base plate. With its particularly of vehicle technology and large machine construction. high Z-axis, the RAX has an extremely large measur- With its particularly large measuring volume, the RAX ing volume. The highest rigidity and smooth-running is especially designed for the very precise measure- drive and guide elements guarantee high-precision ment of high and large volume components. Thanks to measurement results. FEATURES P Numerous versions with or without a base plate, flush or flush with floor, simplex or duplex P Customer-specific measuring volume in all axes, also as multi-column system P Multiple configuration options for probes, sensors, software and accessories P Wide range of applications due to high precision, large measuring volume and high dynamics P Ergonomic, safe and reliable for single measurement and series monitoring APPLICATION AREAS The RAX series is used by many customers worldwide in individual operation or as a multi-column system for mea- suring and digitizing. The main fields of application are in the following areas: Aerospace, shipbuilding, transport and construction and agricultural machinery. Whether for individual parts or assemblies, the RAX series performs the task at hand quickly and precisely. Aerospace Shipbuilding Construction machines 58
