exaCTRA-Features M

RA-FEATURES

PRECISE IN DETAIL

P Base plate of the RA or guide beam of the RAF made of

cast iron, fl oor-level as standard, for fl oor-level access to

the measuring volume and workpiece, optionally on fl oor

P Guide system and transition to base plate covered

without gaps, can be walked on or driven on, guide

groove protected with stainless steel strips

P Surface of the base plate machined to DIN 876/2 as

reference surface for the measured object

P Linear bearings in the X-axis and precision roller bear

-ings in the Y- and Z-axis

PRODUCT RANGE CMMPRODUCT RANGE CMM PRODUCT RANGE CMM PRODUCT RANGE CMM RA-FeaturesexaCT M

P Carbon fi ber Y-arm for high stiffness and dynamics

P Measuring system protected against dirt and damage

P Smooth-running, rail-mounted weight compensation in

the Z-axis for safe and easy handling

P Cover on the Y-arm for safety and as protection against

dirt and damage

P Manual drive using ergonomic handwheels with brakes

in each axis, motorized/CNC or combined with decou

plable motors

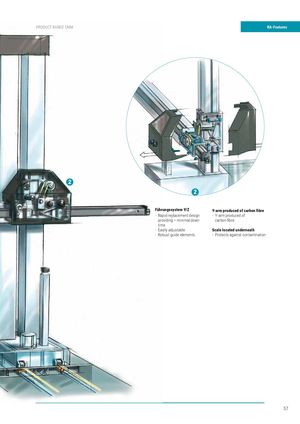

Führungssystem Y/ZY-arm produced of carbon fi bre
- Rapid replacement design- Y-arm produced of
providing – minimal downcarbon fi bre
time
- Easily adjustableScale located underneath
- Robust guide elements- Protects against contamination
Führungssystem XEncapsulated linear guides
- Developed using high- High precision
technology FEM methods- Low sensitivity to contamination
- Distortion-stiff X-axis- Long life

- Low Maintenance Drive unit - Collision and Overload Steel band covers

protection by means of - Steel covers on the X-axis (accessible)

frictional wheel drive - Stainless steel drive bands

- Optimally self cleaning Pneumatically disengageable drives - Eliminate undesired heat

sources
