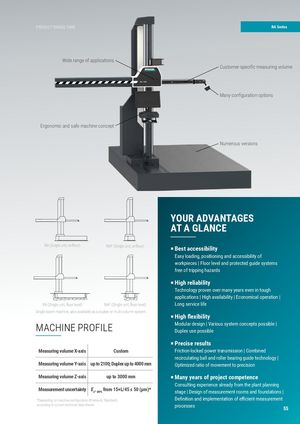

RA Series PRODUCT RANGE CMM RA Series

WENZEL RA SERIES Wide range of applications Customer-specifi c measuring volume FAST, PRECISE MEASUREMENT OF LARGE COMPONENTS

Many confi guration options

A characteristic feature of the RA series is the floor-levelThe machine type is available as a manual or CNC
base plate, into which the guide system is integrated.machine as well as combined with decouplable drives,
Due to this design, the coordinate measuring machinewith tactile and optical sensor technology and is dis-
can easily be equipped with large and heavy compo-tinguished by its excellent accessibility, even for
nents such as complete vehicles. Whether as a singleworkpieces that are difficult to handle. The RA is avail-Ergonomic and safe machine concept

boom machine, as a duplex or multi-column system able in two accuracy classes - Standard and Premium. with integrated underfloor measuring device - RA mea- Numerous versions suring devices deliver the desired results precisely, reliably and quickly.

FEATURES

P Numerous versions with or without base plate, fl ush or surface mounted P Customer-specifi c measuring volume in all axes, also available as multi-column system or with an YOUR ADVANTAGES underfl oor measuring system AT A GLANCE P Many confi guration options for probes, sensors, marking tools and software P Wide range of applications in production or in the measuring room - manual or automated

Ergonomic and safe machine concept meets high safety standards RA (Single unit, onfl oor) RAF (Single unit, onfl oor) Best accessibility

P P Easy loading, positioning and accessibility of workpieces | Floor level and protected guide systems FIELDS OF APPLICATION free of tripping hazards

P High reliability

Technology proven over many years even in tough The RA series is used by many customers worldwide in individual operation or as a multi-column system for measuring, applications | High availability | Economical operation | scribing and digitizing. The main areas of application are in vehicle construction, plant construction and for construc- Long service life RA (Single unit, fl oor level) RAF (Single unit, fl oor level) tion and agricultural machinery. Whether for individual parts, assemblies or complete bodies, the RA series measures Single boom machine, also available as a duplex or multi-column system. the upcoming measuring task quickly and precisely. P High fl exibility MACHINE PROFILE Modular design | Various system concepts possible |

Automotive industry Railroad industry Construction machines Duplex use possible

P Precise results

Measuring volume X-axisCustom
Measuring volume Y-axisup to 2100; Duplex up to 4000 mm
Measuring volume Z-axisup to 3000 mm
Measurement uncertaintyEL, MPE from 15+L/45 ≤ 50 (µm)

recirculating ball and roller bearing guide technology |

Consulting experience already from the plant planning Defi nition and implementation of effi cient measurement

according to current technical data sheets processes 555555
