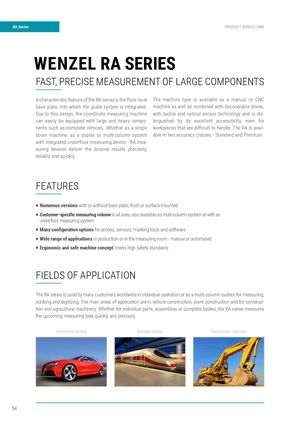

RA SeriesPRODUCT RANGE CMM
WENZEL RA SERIES
FAST, PRECISE MEASUREMENT OF LARGE COMPONENTS
A characteristic feature of the RA series is the floor-levelThe machine type is available as a manual or CNC
base plate, into which the guide system is integrated.machine as well as combined with decouplable drives,
Due to this design, the coordinate measuring machinewith tactile and optical sensor technology and is dis-
can easily be equipped with large and heavy compo-tinguished by its excellent accessibility, even for
nents such as complete vehicles. Whether as a singleworkpieces that are difficult to handle. The RA is avail-
boom machine, as a duplex or multi-column systemable in two accuracy classes - Standard and Premium.

with integrated underfloor measuring device - RA mea- suring devices deliver the desired results precisely, reliably and quickly. FEATURES

P Numerous versions with or without base plate, fl ush or surface mounted P Customer-specifi c measuring volume in all axes, also available as multi-column system or with an underfl oor measuring system P Many confi guration options for probes, sensors, marking tools and software P Wide range of applications in production or in the measuring room - manual or automated Ergonomic and safe machine concept meets high safety standards P

FIELDS OF APPLICATION

The RA series is used by many customers worldwide in individual operation or as a multi-column system for measuring, scribing and digitizing. The main areas of application are in vehicle construction, plant construction and for construction and agricultural machinery. Whether for individual parts, assemblies or complete bodies, the RA series measures the upcoming measuring task quickly and precisely.

Automotive industry Railroad industry Construction machines

54

RA Series

Wide range of applications Customer-specifi c measuring volume

Many confi guration options

Ergonomic and safe machine concept Numerous versions

YOUR ADVANTAGES

AT A GLANCE

RA (Single unit, onfl oor) RAF (Single unit, onfl oor) Best accessibility

P Easy loading, positioning and accessibility of workpieces | Floor level and protected guide systems free of tripping hazards

P High reliability

Technology proven over many years even in tough applications | High availability | Economical operation | Long service life RA (Single unit, fl oor level) RAF (Single unit, fl oor level) Single boom machine, also available as a duplex or multi-column system.

P High fl exibility

MACHINE PROFILE Modular design | Various system concepts possible | Duplex use possible

P Precise results

Measuring volume X-axisCustomFriction-locked power transmission | Combined
recirculating ball and roller bearing guide technology |
Measuring volume Y-axis up to 2100; Duplex up to 4000 mmOptimized ratio of movement to precision
Measuring volume Z-axisup to 3000 mmP Many years of project competence
Consulting experience already from the plant planning

Measurement uncertainty E , from 15+L/45 ≤ 50 (µm)* stage | Design of measurement rooms and foundations |

Defi nition and implementation of effi cient measurement according to current technical data sheets processes
