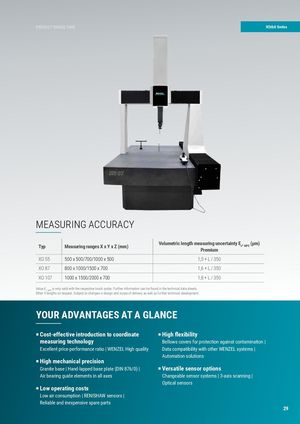

WENZEL GESAMTKATALOGPRODUCT RANGE CMM XOrbit BaureiheXOrbit Series

MEASURING ACCURACY

TypMeasuring ranges X x Y x Z (mm)Volumetric length measuring uncertainty EL, MPE (μm) Premium
XO 55500 x 500/700/1000 x 5001,5 + L / 350
XO 87800 x 1000/1500 x 7001,6 + L / 350
XO 1071000 x 1500/2000 x 7001,8 + L / 350

Value E is only valid with the respective touch probe. Further information can be found in the technical data sheets. Other Y-lengths on request. Subject to changes in design and scope of delivery as well as further technical development.L, MPE

YOUR ADVANTAGES AT A GLANCE

P Cost-effective introduction to coordinate P High fl exibility

measuring technology Bellows covers for protection against contamination | Excellent price-performance ratio | WENZEL High quality Data compatibility with other WENZEL systems | Automation solutions

P High mechanical precision

Granite base | Hand-lapped base plate (DIN 876/0) | P Versatile sensor options Air bearing guide elements in all axes Changeable sensor systems | 3-axis scanning | Optical sensors

P Low operating costs

Low air consumption | RENISHAW sensors | Reliable and inexpensive spare parts
