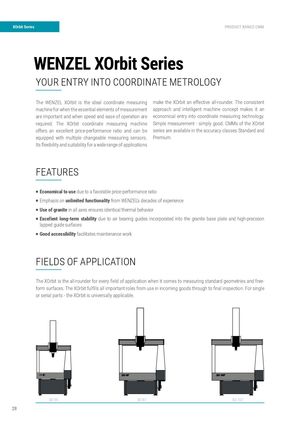

WENZEL XOrbit Series
YOUR ENTRY INTO COORDINATE METROLOGY
The WENZEL XOrbit is the ideal coordinate measuringmake the XOrbit an effective all-rounder. The consistent
machine for when the essential elements of measurementapproach and intelligent machine concept makes it an
are important and when speed and ease of operation areeconomical entry into coordinate measuring technology.
required. The XOrbit coordinate measuring machine Simple measurement - simply good. CMMs of the XOrbit
offers an excellent price-performance ratio and can beseries are available in the accuracy classes Standard and
equipped with multiple changeable measuring sensors.Premium.

Its fl exibility and suitability for a wide range of applications FEATURES P Economical to use due to a favorable price-performance ratio P Emphasis on unlimited functionality from WENZEL’s decades of experience

P Use of granite in all axes ensures identical thermal behavior P Excellent long-term stability due to air bearing guides incorporated into the granite base plate and high-precision lapped guide surfaces P Good accessibility facilitates maintenance work

FIELDS OF APPLICATION

The XOrbit is the all-rounder for every fi eld of application when it comes to measuring standard geometries and freeform surfaces. The XOrbit fulfi lls all important roles from use in incoming goods through to fi nal inspection. For single or serial parts - the XOrbit is universally applicable.

XO 55 XO 87 XO 107

XOrbit Series

MEASURING ACCURACY

Volumetric length measuring uncertainty E , (μm)

TypMeasuring ranges X x Y x Z (mm)L MPE
Premium
XO 55500 x 500/700/1000 x 5001,5 + L / 350
XO 87800 x 1000/1500 x 7001,6 + L / 350
XO 1071000 x 1500/2000 x 7001,8 + L / 350

Value E is only valid with the respective touch probe. Further information can be found in the technical data sheets. Other Y-lengths on request. Subject to changes in design and scope of delivery as well as further technical development.L, MPE YOUR ADVANTAGES AT A GLANCE P Cost-effective introduction to coordinate P High fl exibility

measuring technology Bellows covers for protection against contamination | Excellent price-performance ratio | WENZEL High quality Data compatibility with other WENZEL systems | Automation solutions

P High mechanical precision

Granite base | Hand-lapped base plate (DIN 876/0) | P Versatile sensor options Air bearing guide elements in all axes Changeable sensor systems | 3-axis scanning | Optical sensors

P Low operating costs

Low air consumption | RENISHAW sensors | Reliable and inexpensive spare parts
