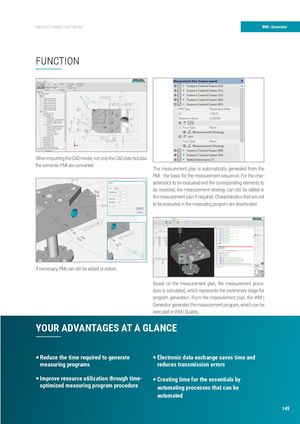

PRODUCT RANGE SOFTWARE WM | Generator FUNCTION When importing the CAD model, not only the CAD data but also the semantic PMI are converted. The measurement plan is automatically generated from the PMI - the basis for the measurement sequence. For the char- acteristics to be evaluated and the corresponding elements to be recorded, the measurement strategy can still be edited in the measurement plan if required. Characteristics that are not to be evaluated in the measuring program are deactivated. If necessary, PMI can still be added or edited. Based on the measurement plan, the measurement proce- dure is calculated, which represents the preliminary stage for program generation. From the measurement plan, the WM | Generator generates the measurement program, which can be executed in WM | Quartis.. YOUR ADVANTAGES AT A GLANCE P Reduce the time required to generate P Electronic data exchange saves time and measuring programs reduces transmission errors P Improve resource utilization through time- P Creating time for the essentials by optimized measuring program procedure automating processes that can be automated 145
