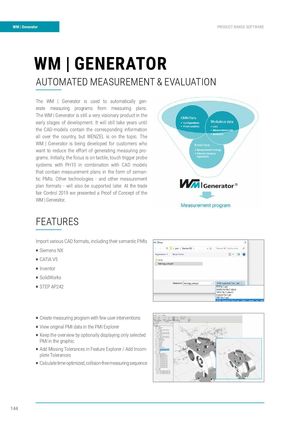

Координатно-измерительные машины WENZEL PRODUCT RANGE - страница 144

WM | Generator PRODUCT RANGE SOFTWARE

WM | GENERATOR

AUTOMATED MEASUREMENT & EVALUATION

The WM | Generator is used to automatically generate measuring programs from measuring plans. The WM | Generator is still a very visionary product in the early stages of development. It will still take years until the CAD-models contain the corresponding information all over the country, but WENZEL is on the topic. The WM | Generator is being developed for customers who want to reduce the effort of generating measuring programs. Initially, the focus is on tactile, touch trigger probe systems with PH10 in combination with CAD models that contain measurement plans in the form of semantic PMIs. Other technologies - and other measurement plan formats - will also be supported later. At the trade fair Control 2019 we presented a Proof of Concept of the WM | Generator.

FEATURES

Import various CAD formats, including their semantic PMIs P Siemens NX P CATIA V5 P Inventor P SolidWorks P STEP AP242

P Create measuring program with few user interventions View original PMI data in the PMI Explorer P P Keep the overview by optionally displaying only selected PMI in the graphic. P Add Missing Tolerances in Feature Explorer / Add Incom- plete Tolerances P Calculate time-optimized, collision-free measuring sequence

WM | Generator

FUNCTION

When importing the CAD model, not only the CAD data but also the semantic PMI are converted. The measurement plan is automatically generated from the PMI - the basis for the measurement sequence. For the characteristics to be evaluated and the corresponding elements to be recorded, the measurement strategy can still be edited in the measurement plan if required. Characteristics that are not to be evaluated in the measuring program are deactivated.

If necessary, PMI can still be added or edited. Based on the measurement plan, the measurement procedure is calculated, which represents the preliminary stage for program generation. From the measurement plan, the WM | Generator generates the measurement program, which can be executed in WM | Quartis..

YOUR ADVANTAGES AT A GLANCE

Reduce the time required to generate Electronic data exchange saves time and

P P

measuring programs reduces transmission errors

P Improve resource utilization through time- P Creating time for the essentials by

optimized measuring program procedure automating processes that can be

automated
