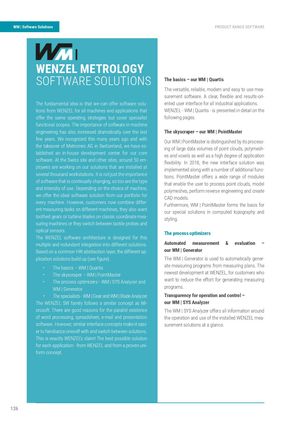

WM | Software Solutions PRODUCT RANGE SOFTWARE

WENZEL METROLOGY

SOFTWARE SOLUTIONS

The basics – our WM | Quartis The versatile, reliable, modern and easy to use measurement software. A clear, fl exible and results-ori-

The fundamental idea is that we can offer software solu-ented user interface for all industrial applications.
tions from WENZEL for all machines and applications thatWENZEL - WM | Quartis - is presented in detail on the
offer the same operating strategies but cover specialistfollowing pages.
functional scopes. The importance of software in machine
engineering has also increased dramatically over the lastThe skyscraper – our WM | PointMaster
few years. We recognized this many years ago and withOur WM | PointMaster is distinguished by its process-
the takeover of Metromec AG in Switzerland, we have es-ing of large data volumes of point clouds, polymesh-
tablished an in-house development center for our corees and voxels as well as a high degree of application
software. At the Swiss site and other sites, around 50 em-fl exibility. In 2018, the new interface solution was
ployees are working on our solutions that are installed atimplemented along with a number of additional func-
several thousand workstations. It is not just the importancetions. PointMaster offers a wide range of modules
of software that is continually changing, so too are the typethat enable the user to process point clouds, model
and intensity of use. Depending on the choice of machine,polymeshes, perform reverse engineering and create
we offer the ideal software solution from our portfolio forCAD models.
every machine. However, customers now combine differ-Furthermore, WM | PointMaster forms the basis for
ent measuring tasks on different machines, they also wantour special solutions in computed topography and
toothed gears or turbine blades on classic coordinate mea-styling.
suring machines or they switch between tactile probes and
optical sensors.The process optimizers
The WENZEL software architecture is designed for this
multiple and redundant integration into different solutions.Automated measurement & evaluation –
Based on a common HW abstraction layer, the different ap-our WM | Generator
plication solutions build up (see fi gure).The WM | Generator is used to automatically gener-
•The basics – WM | Quartis ate measuring programs from measuring plans. The
•The skyscraper – WM | PointMaster newest development at WENZEL, for customers who
•The process optimizers– WM | SYS Analyzer and want to reduce the effort for generating measuring
WM | Generator programs.
•The specialists - WM | Gear and WM | Blade Analyzer Transparency for operation and control –
The WENZEL SW family follows a similar concept as Mi-our WM | SYS Analyzer
crosoft. There are good reasons for the parallel existenceThe WM | SYS Analyzer offers all information around
of word processing, spreadsheet, e-mail and presentationthe operation and use of the installed WENZEL mea-
software. However, similar interface concepts make it easi-surement solutions at a glance.

er to familiarize oneself with and switch between solutions. This is exactly WENZEL’s claim! The best possible solution for each application - from WENZEL and from a proven uni- form concept.
