WM | SHAPETRACER IIWM | SHAPETRACER II PRODUCT RANGE OPTICAL SENSORS

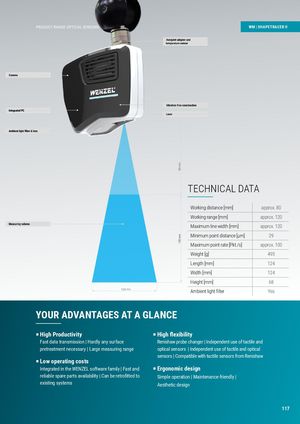

WM | SHAPETRACER II
HIGHEST FLEXIBILITY & CONVINCING PERFORMANCE
The WM | SHAPETRACER II is a highly fl exible 3D line scan-was achieved. The WM | SHAPETRACER II works with
ner for the acquisition and processing of point clouds onthe lens and ambient light fi lter independently of ambient
a multisensor coordinate measuring machine. The opticallight and offers a high degree of fl exibility with regard to a
sensor is integrated into the software ofwide range of workpiece colors. Firmware updates
Wenzel integrates with both WM|PointMaster and can be easily controlled via the multiwire interface
WM|Quartis and thus delivers high-quality, precise andof the Autojoint adapter. Since the calibration data of the
repeatable results. With the3D line scanner is stored on an intelligent camera system,
WM | SHAPETRACER II sets WENZEL standards in thethe installation is very easy. The connection to the coordi-
fi eld of digitization. In comparison to the predecessornate measuring machine
model, an increase in the measuring range and the mea-is carried out via an automatic, fully integrated Multi-
suring speed has resulted in an increase in performance.sensor-Interface. The combination of optical and tactile
of over 400 %. By using a blue laser line and a better resolu-measurement ensures effective work for every applica-

tion, a higher tolerance towards critical surface structures tion. TECHNICAL DATA

Working distance [mm]approx. 80
Working range [mm]approx. 120
Maximum line width [mm]approx. 120
Minimum point distance [µm]29
Maximum point rate [Pkt./s]approx. 100
Weight [g]495
Length [mm]124
Width [mm]124
Height [mm]68
Ambient light fi lterYes

P Automatically replaceable with Autojoint adapter P Optimized line width P P P P P P

APPLICATION AREAS YOUR ADVANTAGES AT A GLANCE

The 3D line scanner WM | SHAPETRACER II turns your coordinate measuring machine into the ideal tool for recording and P High Productivity P High fl exibility

editing point clouds. WM | SHAPETRACER II can be used in the following industrial and application areas, among others:Fast data transmission | Hardly any surfaceRenishaw probe changer | Independent use of tactile and
pretreatment necessary | Large measuring rangeoptical sensors | Independent use of tactile and optical
P Styling- and designstudiosP Automation technologysensors | Compatible with tactile sensors from Renishaw
P Low operating costs
P Tool and mould makingP Verifi cation and evaluationErgonomic design
Integrated in the WENZEL software family | Fast andP
P Prototype constructionP Nominal – actual color mapsreliable spare parts availability | Can be retrofi tted toSimple operation | Maintenance-friendly |
P Automotive industryP Digitization of design applicationsexisting systemsAesthetic design
