exaCT MCOMPUTED TOMOGRAPHY PRODUCT RANGE

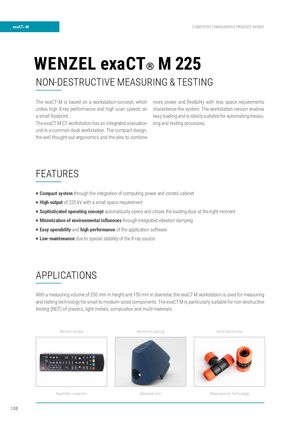

WENZEL exaCT M 225
NON-DESTRUCTIVE MEASURING & TESTING
The exaCT M is based on a workstation-concept, whichmore power and fl exibility with less space requirements
unites high X-ray performance and high scan speeds oncharacterize the system. The workstation version enables
a small footprint.easy loading and is ideally suitable for automating measu-
The exaCT M CT workstation has an integrated evaluationring and testing processes.

unit in a common desk workstation. The compact design, the well thought-out ergonomics and the idea to combine

FEATURES

P Compact system through the integration of computing power and control cabinet P High output of 225 kV with a small space requirement P Sophisticated operating concept automatically opens and closes the loading door at the right moment Minimization of environmental infl uences through integrated vibration damping P P Easy operability and high performance of the application software P Low-maintenance due to special stability of the X-ray source

APPLICATIONS

With a measuring volume of 250 mm in height and 150 mm in diameter, the exaCT M workstation is used for measuring and testing technology for small to medium-sized components. The exaCT M is particularly suitable for non-destructive testing (NDT) of plastics, light metals, composites and multi-materials.

Remote controlAluminum castingHose Connectors
Assembly inspectionBlowhole testMeasurement Technology

L

H

B

exaCT M 225

Space Requirements (L x B x H) 1275 x 2315 x 1415 mm X-Ray (Voltage, Power) 225 kV, 800 W Detector Resolution 3600 x 1000 Pixel, 50 µm Work Piece Dimensions Ø 150 x 250 mm* * The measurable height depends on the component diameter.

exaCT M

YOUR BENEFITS

AT A GLANCE

P Flexible compact system

Scanning of plastics, light metals and multi-materials | Integrated computer and control cabinet

P High performance on a small footprint

Best performance during scanning and reconstruction | Workstation version for easy loading | Suitable for workshops

P One scan, maximum time saving

Measurement with virtual CMM | NDT and error analysis | Microstructure analysis

P Reliable measurement results

High resolution | Powerful application software | Integrated vibration damping

P Optimized operating costs

Low-maintenance radiation source | High availability due to precision mechanics | Longer calibration intervals
