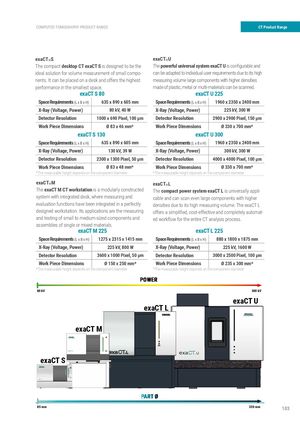

COMPUTED TOMOGRAPHY PRODUCT RANGE CT Product Range

exaCT S exaCT U

The compact desktop CT exaCT S is designed to be theThe powerful universal system exaCT U is confi gurable and
ideal solution for volume measurement of small compo-can be adapted to individual user requirements due to its high
nents. It can be placed on a desk and offers the highestmeasuring volume large components with higher densities
performance in the smallest space.made of plastic, metal or multi-materials can be scanned.

exaCT S 80 exaCT U 225

Space Requirements (L x B x H)635 x 890 x 605 mm
X-Ray (Voltage, Power)80 kV, 40 W
Detector Resolution1000 x 690 Pixel, 100 μm
Work Piece Dimensions exaCTØ 83 x 46 mm S 130
Space Requirements (L x B x H)635 x 890 x 605 mm
X-Ray (Voltage, Power)130 kV, 39 W
Detector Resolution2300 x 1300 Pixel, 50 μm
Work Piece DimensionsØ 83 x 48 mm
Space Requirements (L x B x H)1960 x 2350 x 2400 mm
X-Ray (Voltage, Power)225 kV, 300 W
Detector Resolution2900 x 2900 Pixel, 150 μm
Work Piece Dimensions exaCTØ 330 x 700 mm U 300
Space Requirements (L x B x H)1960 x 2350 x 2400 mm
X-Ray (Voltage, Power)300 kV, 300 W
Detector Resolution4000 x 4000 Pixel, 100 µm
Work Piece DimensionsØ 330 x 700 mm

*The measurable height depends on the component diameter *The measurable height depends on the component diameter exaCT M exaCT L

The exaCT M CT workstation is a modularly constructedThe compact power system exaCT L is universally appli-
system with integrated desk, where measuring andcable and can scan even large components with higher
evaluation functions have been integrated in a perfectlydensities due to its high measuring volume. The exaCT L
designed workstation. Its applications are the measuringoffers a simplifi ed, cost-effective and completely automat-
and testing of small to medium-sized components anded workfl ow for the entire CT analysis process.

assemblies of single or mixed materials. exaCT M 225 exaCT L 225

Space Requirements (L x B x H)1275 x 2315 x 1415 mm
X-Ray (Voltage, Power)225 kV, 800 W
Detector Resolution3600 x 1000 Pixel, 50 µm
Work Piece DimensionsØ 150 x 250 mm
Space Requirements (L x B x H)880 x 1800 x 1875 mm
X-Ray (Voltage, Power)225 kV, 1600 W
Detector Resolution3000 x 2500 Pixel, 100 μm
Work Piece DimensionsØ 235 x 300 mm

*The measurable height depends on the component diameter *The measurable height depends on the component diameter POWER 80 kV 300 kV

exaCT U

exaCT L

exaCT M

exaCT S

PART Ø

85 mm 330 mm 1037
