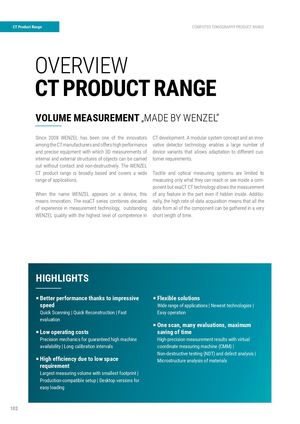

CT Product Range COMPUTED TOMOGRAPHY PRODUCT RANGE
OVERVIEW
CT PRODUCT RANGE
VOLUME MEASUREMENT „MADE BY WENZEL“
Since 2008 WENZEL has been one of the innovatorsCT development. A modular system concept and an inno-
among the CT manufacturers and offers high performancevative detector technology enables a large number of
and precise equipment with which 3D measurements ofdevice variants that allows adaptation to different cus-
internal and external structures of objects can be carriedtomer requirements.
out without contact and non-destructively. The WENZEL
CT product range is broadly based and covers a wideTactile and optical measuring systems are limited to
range of applications.measuring only what they can reach or see inside a com-
ponent but exaCT CT technology allows the measurement
When the name WENZEL appears on a device, this of any feature in the part even if hidden inside. Additio-
means innovation. The exaCT series combines decadesnally, the high rate of data acquisition means that all the
of experience in measurement technology, outstandingdata from all of the component can be gathered in a very
WENZEL quality with the highest level of competence inshort length of time.

HIGHLIGHTS

P Better performance thanks to impressive P Flexible solutions
speedWide range of applications | Newest technologies |
Quick Scanning | Quick Reconstruction | FastEasy operation
evaluation
P One scan, many evaluations, maximum
P Low operating costssaving of time
Precision mechanics for guaranteed high machineHigh-precision measurement results with virtual
availability | Long calibration intervalscoordinate measuring machine (CMM) |
Non-destructive testing (NDT) and defect analysis |
P High effi ciency due to low space Microstructure analysis of materials

requirement Largest measuring volume with smallest footprint | Production-compatible setup | Desktop versions for easy loading

10266

COMPUTED TOMOGRAPHY PRODUCT RANGE CT Product Range

exaCT S exaCT U

The compact desktop CT exaCT S is designed to be theThe powerful universal system exaCT U is confi gurable and
ideal solution for volume measurement of small compo-can be adapted to individual user requirements due to its high
nents. It can be placed on a desk and offers the highestmeasuring volume large components with higher densities
performance in the smallest space.made of plastic, metal or multi-materials can be scanned.
exaCT S 80exaCT U 225
Space Requirements (L x B x H)635 x 890 x 605 mmSpace Requirements (L x B x H)1960 x 2350 x 2400 mm
X-Ray (Voltage, Power)80 kV, 40 WX-Ray (Voltage, Power)225 kV, 300 W
Detector Resolution1000 x 690 Pixel, 100 μmDetector Resolution2900 x 2900 Pixel, 150 μm
Work Piece DimensionsØ 83 x 46 mm*Work Piece DimensionsØ 330 x 700 mm*
exaCT S 130exaCT U 300
Space Requirements (L x B x H)635 x 890 x 605 mmSpace Requirements (L x B x H)1960 x 2350 x 2400 mm
X-Ray (Voltage, Power)130 kV, 39 WX-Ray (Voltage, Power)300 kV, 300 W
Detector Resolution2300 x 1300 Pixel, 50 μmDetector Resolution4000 x 4000 Pixel, 100 µm
Work Piece DimensionsØ 83 x 48 mm*Work Piece DimensionsØ 330 x 700 mm*
*The measurable height depends on the component diameter*The measurable height depends on the component diameter
exaCT MexaCT L
The exaCT M CT workstation is a modularly constructedThe compact power system exaCT L is universally appli-
system with integrated desk, where measuring andcable and can scan even large components with higher
evaluation functions have been integrated in a perfectlydensities due to its high measuring volume. The exaCT L
designed workstation. Its applications are the measuringoffers a simplifi ed, cost-effective and completely automat-
and testing of small to medium-sized components anded workfl ow for the entire CT analysis process.
assemblies of single or mixed materials.
exaCT M 225exaCT L 225
YOU ARE GROWINGSpace Requirements(L x B x H)1275 x 2315 x 1415 mmSpace Requirements (L x B x H)880 x 1800 x 1875 mm
AND SO ARE WE!X-Ray (Voltage, Power)225 kV, 800 WX-Ray (Voltage, Power)225 kV, 1600 W
Detector Resolution3600 x 1000 Pixel, 50 µmDetector Resolution3000 x 2500 Pixel, 100 μm
Work Piece DimensionsØ 150 x 250 mm*Work Piece DimensionsØ 235 x 300 mm*

*The measurable height depends on the component diameter *The measurable height depends on the component diameter POWER 80 kV 300 kV exaCT U

exaCT L

exaCT M

exaCT S

PART Ø

85 mm 330 mm 7
