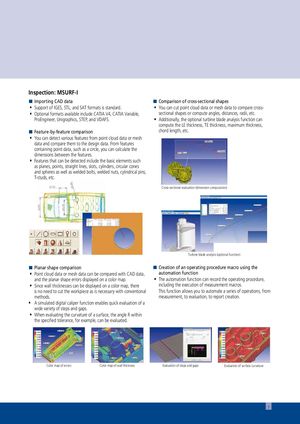

Inspection: MSURF-I

Importing CAD data Comparison of cross-sectional shapes

• Support of IGES, STL, and SAT formats is standard.
• You can cut point cloud data or mesh data to compare cross-
• Optional formats available include CATIA V4, CATIA Variable, sectional shapes or compute angles, distances, radii, etc.

ProEngineer, Unigraphics, STEP, and VDAFS. Additionally, the optional turbine blade analysis function can

• compute the LE thickness, TE thickness, maximum thickness,

Feature-by-feature comparison chord length, etc.

• You can detect various features from point cloud data or mesh

data and compare them to the design data. From features containing point data, such as a circle, you can calculate the dimensions between the features.

• Features that can be detected include the basic elements such

as planes, points, straight lines, slots, cylinders, circular cones and spheres as well as welded bolts, welded nuts, cylindrical pins, T-studs, etc. Cross-sectional evaluation (dimension computation)

Turbine blade analysis (optional function) Planar shape comparison Creation of an operating procedure macro using the

• Point cloud data or mesh data can be compared with CAD data, automation function

and the planar shape errors displayed on a color map. The automation function can record the operating procedure,

• Since wall thicknesses can be displayed on a color map, there including the execution of measurement macros.

• A simulated digital caliper function enables quick evaluation of a

wide variety of steps and gaps.

• When evaluating the curvature of a surface, the angle R within

the specified tolerance, for example, can be evaluated.

Color map of errors Color map of wall thickness Evaluation of steps and gaps Evaluation of surface curvature
