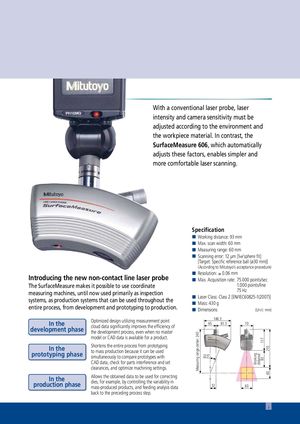

With a conventional laser probe, laser intensity and camera sensitivity must be adjusted according to the environment and the workpiece material. In contrast, the SurfaceMeasure 606, which automatically adjusts these factors, enables simpler and more comfortable laser scanning.

Introducing the new non-contact line laser probe

The SurfaceMeasure makes it possible to use coordinate measuring machines, until now used primarily as inspection systems, as production systems that can be used throughout the entire process, from development and prototyping to production. Optimized design utilizing measurement point In the

development phasecloud data significantly improves the efficiency of
the development process, even when no master
model or CAD data is available for a product.
In the Shortens the entire process from prototyping
prototyping phaseto mass production because it can be used
simultaneously to compare prototypes with
CAD data, check for parts interference and set
clearances, and optimize machining settings.
In the Allows the obtained data to be used for correcting
production phasedies, for example, by controlling the variability in

mass-produced products, and feeding analysis data back to the preceding process step.

Specification

  • Working distance: 93 mm
  • Max. scan width: 60 mm
  • Measuring range: 60 mm Scanning error: 12 µm [1σ/ sphere fit] [Target: Specific reference ball (ø30 mm)]
  • (According to Mitutoyo’s acceptance procedure)
  • Resolution: ≥ 0.06 mm Max. Acquisition rate: 75.000 points/sec

1.000 points/line

  • 75 Hz

Laser Class: Class 2 [EN/IEC60825-1(2007)]

  • Mass: 430 g Dimensions (Unit: mm)

146.3

65 81.3 70

22.5° Working distance:

32 60
