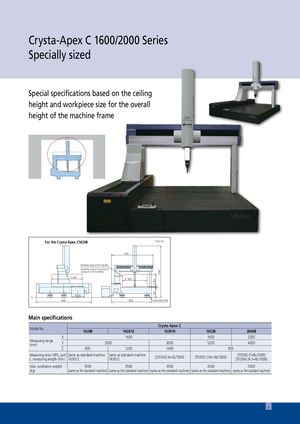

Crysta-Apex C 1600/2000 Series

Specially sized

Special specifications based on the ceiling

height and workpiece size for the overall

height of the machine frame

For the Crysta-Apex C16208

Traveling range of the Z spindle (traveling range of the center of rotation for the PH10MQ) Y: 2005

Units: mm

2700

X: 1605

F.L

3600 2600 Dedicated stand

Main specifications

Mdl NCrysta-Apex C
oe o.162081620121630141652820408
X160516052005
Measuring range (mm) Y2005300552054005
Z80512051405805
Measuring error MPEE(µm) L: measuring length (mm)Same as standard machine 163012Same as standard machine 163012[SP25M] (4+5L/1000)[TP200] (18+18L/1000)[TP200] (7+6L/1000) [SP25M] (4.5+6L/1000)
Max. workpiece weight (kg)3500 (same as the standard machine)3500 (same as the standard machine)3500 (same as the standard machine)2000 (same as the standard machine)5000 (same as the standard machine)
