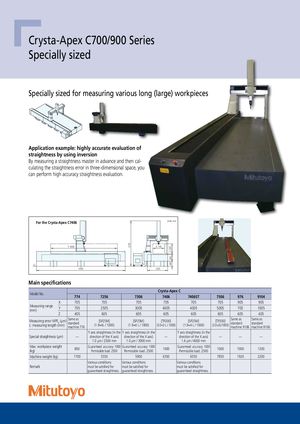

Crysta-Apex C700/900 Series

Specially sized

Specially sized for measuring various long (large) workpieces

Application example: highly accurate evaluation of

straightness by using inversion

By measuring a straightness master in advance and then cal-

culating the straightness error in three-dimensional space, you

can perform high accuracy straightness evaluation.

For the Crysta-Apex C7406 Units: mm

Y: 4005 X: 705

F.L 5330 1225

Main specifications

Mdl NCrysta-Apex C
oe o.7747256730674067406ST75069769104
X705705705705705705905905
Measuring range (mm) Y705250530054005400550057051005
Z405605605605605605605405
Measuring error MPEE(µm) L: measuring length (mm)Same as standard machine 776[SP25M] (1.9+4L / 1000)[SP25M] (1.9+4 L / 1000)[TP200] (3.0+3 L / 1000)[SP25M] (1.9+4 L / 1000)[TP200] (3.0+3L/1000)Same as standard machine 9106Same as standard machine 9106
Special straightness (µm)—Y axis straightness (in the direction of the X axis) 1.0µm / 2500 mmY axis straightness (in the direction of the X axis) 1.0µm / 3000 mm—Y axis straightness (in the direction of the X axis) 1.4µm / 4000 mm———
Max. workpiece weight (kg)800Guaranteed accuracy: 1000 Permissible load: 2500Guaranteed accuracy: 1000 Permissible load: 25001000Guaranteed accuracy: 1000 Permissible load: 2500100010001200
Machine weight(kg)17005550590063506550785019202200
RemarkVarious conditions must be satisfied for guaranteed straightness.Various conditions must be satisfied for guaranteed straightness.Various conditions must be satisfied for guaranteed straightness.
