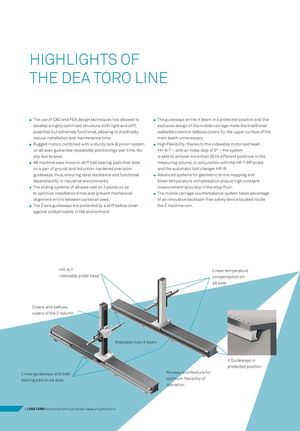

HIGHLIGHTS OF

The use of CAD and FEA design techniques has allowed to	The guideways on the X beam in a protected position and the
develop a highly optimized structure, both light and stiff,	exclusive design of the mobile carriage make the traditional
essential but extremely functional, allowing to drastically	walkable covers or bellows covers for the upper surface of the
reduce installation and maintenance time.	main beam unnecessary.
Rugged motors combined with a sturdy rack & pinion system	High Flexibility: thanks to the indexable motorized head
on all axes guarantee repeatable positionings over time. No	HH-A-T – with an index step of 5° – the system
slip due to wear.	is able to achieve more than 3024 different positions in the
All machine axes move on stiff ball bearing pads that slide	measuring volume, in conjunction with the HP-T-RP probe
on a pair of ground and induction-hardened precision	and the automatic tool changer HR-R.
guideways, thus, ensuring ideal resistance and functional	Advanced systems for geometric errors mapping and
dependability in industrial environments.	linear temperature compensation ensure high constant
The sliding systems of all axes rest on 3 points so as	measurement accuracy in the shop floor.
to optimize installation times and prevent mechanical	The mobile carriage counterbalance system takes advantage
alignment errors between cartesian axes.	of an innovative backlash-free safety device located inside
The Z axis guideways are protected by a stiff bellow cover	the Z machine ram.

against contaminants in the environment.

HH-A-T Linear temperature indexable probe head compensation on all axes

Covers and bellows covers of the Z column

Walkable main X beam

Linear guideways with ball Runway architecture for bearing pad on all axes optimum flexibility of operation

X Guideways in protected position

4 | DEA TORO Horizontal Arm Coordinate Measuring Machine
