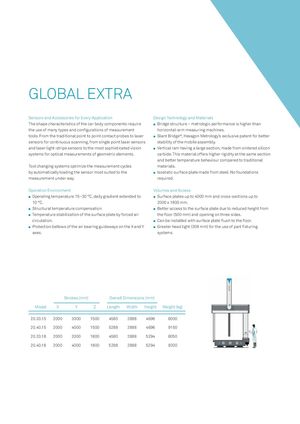

GLOBAL eXtrA

sensors and Accessories for every ApplicationDesign technology and Materials
the shape characteristics of the car body components requireBridge structure – metrologic performance is higher than
the use of many types and configurations of measurementhorizontal-arm measuring machines.
tools. from the traditional point to point contact probes to laserslant Bridge®, Hexagon Metrology’s exclusive patent for better
sensors for continuous scanning, from single point laser sensorsstability of the mobile assembly.
and laser light-stripe sensors to the most sophisticated visionvertical ram having a large section, made from sintered silicon
systems for optical measurements of geometric elements.carbide. this material offers higher rigidity at the same section
and better temperature behaviour compared to traditional
tool changing systems optimize the measure ment cyclesmaterials.
by automatically loading the sensor most suited to theIsostatic surface plate made from steel. no foundations
measurement under way.required.
Operation environmentvolumes and Access
Operating temperature 15–30 °C, daily gradient extended tosurface plates up to 4000 mm and cross-sections up to
10 °C.2000 x 1800 mm.
structural temperature compensationBetter access to the surface plate due to reduced height from
temperature stabilization of the surface plate by forced airthe floor (500 mm) and opening on three sides.
circulation.Can be installed with surface plate flush to the floor.
Protection bellows of the air bearing guideways on the X and YGreater head light (308 mm) for the use of part fixturing
axes.systems.
strokes (mm)OverallDimensions (mm)
ModelXYZLengthWidthHeightWeight (kg)
20.33.152000330015004580288846968000
20.40.152000400015005288288846969150
20.33.182000330018004580288852948050
20.40.182000400018005288288852949200
