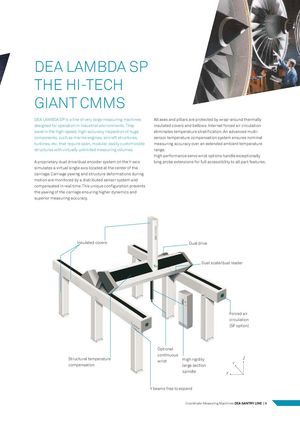

DEA LAMBDA SP

THE HI-TECH

GIANT CMMS

DEA LAMBDA SP is a line of very large measuring machinesAll axes and pillars are protected by wrap-around thermally
designed for operation in industrial environments. Theyinsulated covers and bellows. Internal forced air circulation
excel in the high-speed, high-accuracy inspection of hugeeliminates temperature stratification. An advanced multi-
components, such as marine engines, aircraft structures,sensor temperature compensation system ensures nominal
turbines, etc. that require open, modular, easily customizablemeasuring accuracy over an extended ambient temperature
structures with virtually unlimited measuring volumes.range.
High performance servo wrist options handle exceptionally
A proprietary dual drive/dual encoder system on the Y-axislong probe extensions for full accessibility to all part features.

simulates a virtual single axis located at the center of the carriage. Carriage yawing and structure deformations during motion are monitored by a distributed sensor system and compensated in real time. This unique configuration prevents

the yawing of the carriage ensuring higher dynamics and superior measuring accuracy.

Insulated covers Dual drive

Dual scale/dual reader

Forced air circulation (SF option)

Optional continuous

Structural temperatureHigh rigidityZ
wrist
compensationlarge sectionY

spindle X

Y beams free to expand
