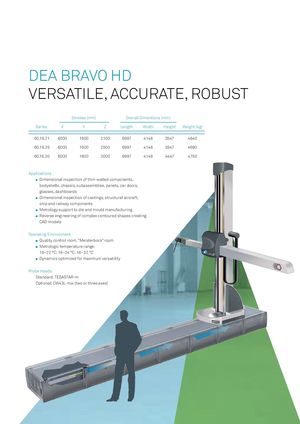

DEA BRAVO HD Versatile, Accurate, Robust Strokes (mm) Overall Dimentions (mm) Series X Y Z Length Width Height Weight (kg) 60.16.21 6000 1600 2100 6997 4148 3547 4640 60.16.25 6000 1600 2500 6997 4148 3947 4690 60.16.30 6000 1600 3000 6997 4148 4447 4750 Applications  Dimensional inspection of thin-walled components, bodyshells, chassis, subassemblies, panels, car doors, glasses, dashboards  Dimensional inspection of castings, structural aircraft, ship and railway components  Metrology support to die and mould manufacturing  Reverse engineering of complex contoured shapes creating CAD models Operating Environment  Quality control room, “Meisterbock” room  Metrologic temperature range: 18–22 °C; 16–24 °C; 16–32 °C  Dynamics optimized for maximum versatility Probe Heads Standard: TESASTAR-m Optional: CW43L-mw (two or three axes)
