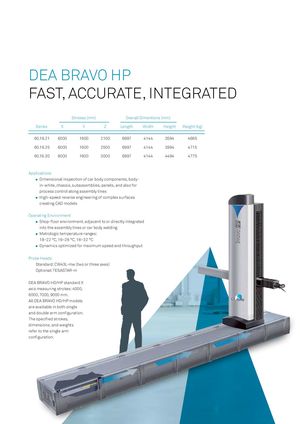

DEA BRAVO HP

fAST, ACCuRATE, inTEGRATED

Applications Dimensional inspection of car body components, bodyin-white, chassis, subassemblies, panels, and also for process control along assembly lines High-speed reverse engineering of complex surfaces creating CAD models Operating Environment Shop-floor environment, adjacent to or directly integrated into the assembly lines or car body welding metrologic temperature ranges: 18–22 °C, 16–26 °C, 16–32 °C Dynamics optimized for maximum speed and throughput Probe Heads Standard: CW43l-mw (two or three axes) Optional: TESASTAR-m DEA BRAVO HD/HP standard X axis measuring strokes: 4000, 6000, 7000, 9000 mm. All DEA BRAVO HD/HP models are available in both single and double arm configuration. The specified strokes, dimensions, and weights refer to the single arm configuration.
