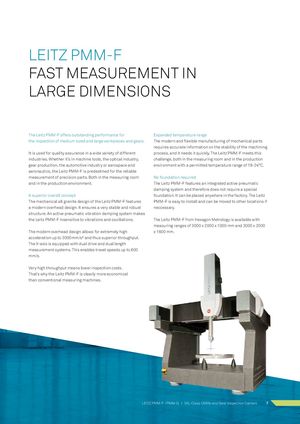

LEITZ PMM-F

FAST MEASUREMENT IN

LARGE DIMENSIONS

The Leitz PMM-F offers outstanding performance forExpanded temperature range
the inspection of medium sized and large workpieces and gears.The modern and flexible manufacturing of mechanical parts
requires accurate information on the stability of the machining
It is used for quality assurance in a wide variety of differentprocess, and it needs it quickly. The Leitz PMM-F meets this
industries. Whether it’s in machine tools, the optical industry,challenge, both in the measuring room and in the production
gear production, the automotive industry or aerospace andenvironment with a permitted temperature range of 18-24°C.
aeronautics, the Leitz PMM-F is predestined for the reliable
measurement of precision parts. Both in the measuring roomNo foundation required
and in the production environment.The Leitz PMM-F features an integrated active pneumatic
damping system and therefore does not require a special
A superior overall conceptfoundation. It can be placed anywhere in the factory. The Leitz
The mechanical all granite design of the Leitz PMM-F featuresPMM-F is easy to install and can be moved to other locations if
a modern overhead design. It ensures a very stable and robustneccessary.
structure. An active pneumatic vibration damping system makes
the Leitz PMM-F insensitive to vibrations and oscillations.The Leitz PMM-F from Hexagon Metrology is available with
measuring ranges of 3000 x 2000 x 1000 mm and 3000 x 2000
The modern overhead design allows for extremely highx 1600 mm.

acceleration up to 3000mm/s² and thus superior throughput. The X-axis is equipped with dual drive and dual length measurement systems. This enables travel speeds up to 600 mm/s.

Very high throughput means lower inspection costs. That’s why the Leitz PMM-F is clearly more economical than conventional measuring machines.
