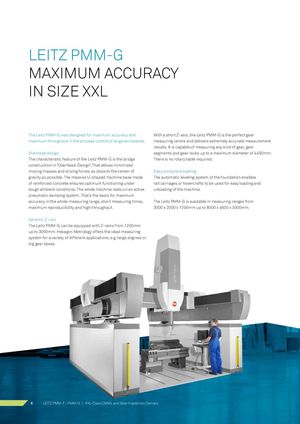

LEITZ PMM-G

MAXIMUM ACCURACY

IN SIZE XXL

The Leitz PMM-G was designed for maximum accuracy andWith a short Z-axis, the Leitz PMM-G is the perfect gear
maximum throughput in the process control of large workpieces.measuring centre and delivers extremely accurate measurement
results. It is capable of measuring any kind of gear, gear
Overhead designsegments and gear racks up to a maximum diameter of 4450mm.
The characteristic feature of the Leitz PMM-G is the bridgeThere is no rotary table required.
construction in “Overhead-Design”. That allows minimized
moving masses and driving forces as close to the center ofEasy workpiece loading
gravity as possible. The massive U-shaped machine base madeThe automatic leveling system of the foundation enables
of reinforced concrete ensures optimum functioning underrail carriages or hovercrafts to be used for easy loading and
tough ambient conditions. The whole machine rests on an activeunloading of the machine.
pneumatic damping system. That’s the basis for maximum
accuracy in the whole measuring range, short measuring times,The Leitz PMM-G is available in measuring ranges from
maximum reproducibility and high throughput.3000 x 2000 x 1200mm up to 8000 x 4500 x 3000mm.

Ceramic Z-ram The Leitz PMM-G can be equipped with Z-rams from 1200mm up to 3000mm. Hexagon Metrology offers the ideal measuring system for a variety of different applications, e.g. large engines or

big gear boxes.
