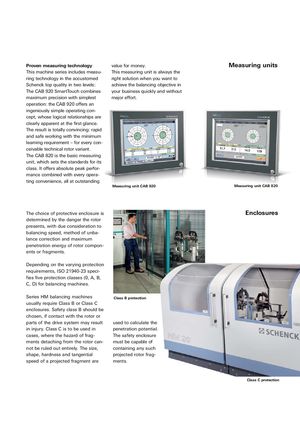

Proven measuring technologyMeasuring units value for money.
This machine series includes measu-This measuring unit is always the
ring technology in the accustomedright solution when you want to
Schenck top quality in two levels:achieve the balancing objective in
The CAB 920 SmartTouch combinesyour business quickly and without
maximum precision with simplestmajor effort.

operation: the CAB 920 offers an ingeniously simple operating con- cept, whose logical relationships are clearly apparent at the first glance.

The result is totally convincing: rapid and safe working with the minimum learning requirement – for every conceivable technical rotor variant. The CAB 820 is the basic measuring unit, which sets the standards for its class. It offers absolute peak performance combined with every operating convenience, all at outstanding Measuring unit CAB 920 Measuring unit CAB 820

The choice of protective enclosure is Enclosures determined by the danger the rotor presents, with due consideration to balancing speed, method of unbalance correction and maximum penetration energy of rotor components or fragments. Depending on the varying protection requirements, ISO 21940-23 specifies five protection classes (0, A, B, C, D) for balancing machines.

Series HM balancing machinesClass B protection
usually require Class B or Class C
enclosures. Safety class B should be
chosen, if contact with the rotor or
parts of the drive system may resultused to calculate the
in injury. Class C is to be used inpenetration potential.
cases, where the hazard of frag-The safety enclosure
ments detaching from the rotor can-must be capable of
not be ruled out entirely. The size,containing any such
shape, hardness and tangentialprojected rotor frag-
speed of a projected fragment arements.

Class C protection
