Rush Machinery provides innovative, practical, and top quality products that save

time and money, and improve the way people grind tools.

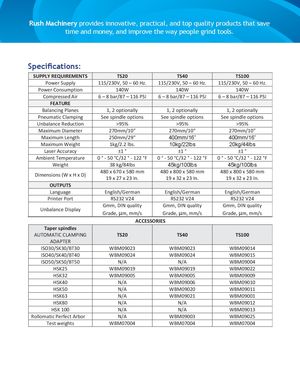

Specifications: SPECIFICATIONS

SUPPLY REQUIREMENTSTS20TS40TS100
Power Supply115/230V,50 – 60 Hz.115/230V,50 – 60 Hz.115/230V,50 – 60 Hz.
Power Consumption140W140W140W
Compressed Air6 – 8 bar/87 – 116 PSI6 – 8 bar/87 – 116 PSI6 – 8 bar/87 – 116 PSI
FEATURE
BalancingPlanes1,2 optionally1,2 optionally1,2 optionally
Pneumatic ClampingSee spindle optionsSee spindle optionsSee spindle options
Unbalance Reduction>95%>95%>95%
Maximum Diameter270mm/10”270mm/10”270mm/10”
Maximum Length250mm/29”400mm/16”400mm/16”
Maximum Weight1kg/2.2 lbs.10kg/22lbs20kg/44lbs
Laser Accuracy±1 °±1 °±1 °
Ambient Temperature0 ° - 50 °C/32 ° - 122 °F0 ° - 50 °C/32 ° - 122 °F0 ° - 50 °C/32 ° - 122 °F
Weight38 kg/84lbs45kg/100lbs45kg/100lbs
Dimensions (W x H x D)480 x 670 x 580 mm 19 x 27 x 23 In.480 x 800 x 580 mm 19 x 32 x 23 In.480 x 800 x 580 mm 19 x 32 x 23 In.
OUTPUTS
LanguageEnglish/GermanEnglish/GermanEnglish/German
Printer PortRS232 V24RS232 V24RS232 V24
Unbalance DisplayGmm, DIN qualityGmm, DIN qualityGmm, DIN quality
Gradeμmmm/sGradeμmmm/sGradeμmmm/s
, , ACCESS, , ORIES, ,
Taper spindles AUTOMATIC CLAMPING ADAPTERTS20TS40TS100
ISO30/SK30/BT30WBM09023WBM09023WBM09014
ISO40/SK40/BT40WBM09024WBM09024WBM09015
ISO50/SK50/BT50N/AN/AWBM09004
HSK25WBM09019WBM09019WBM09022
HSK32WBM09005WBM09005WBM09009
HSK40N/AWBM09006WBM09010
HSK50N/AWBM09020WBM09011
HSK63N/AWBM09021WBM09001
HSK80N/AN/AWBM09012
HSK 100N/AN/AWBM09013
Rollomatic Perfect ArborN/AWBM09003WBM09025
Test weightsWBM07004WBM07004WBM07004
