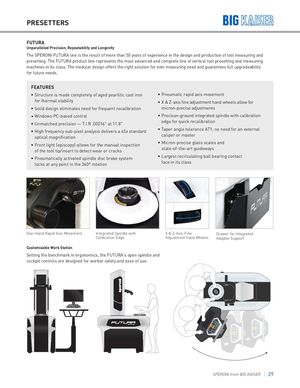

FUTURA
Unparalleled Precision, Repeatability and Longevity The SPERONI FUTURA line is the result of more than 50 years of experience in the design and production of tool measuring and presetting. The FUTURA product line represents the most advanced and complete line of vertical tool presetting and measuring machines in its class. The modular design offers the right solution for ever measuring need and guarantees full upgradeability for future needs.
FEATURES
- Structure is made completely of aged pearlitic cast iron
- Pneumatic rapid axis movement
for thermal stability X & Z-axis fine adjustment hand wheels allow for
- Solid design eliminates need for frequent recalibration micron-precise adjustments
- Windows PC-based control
- Precison-ground integrated spindle with calibration
| Unmatched precision — T.I.R .00016" at 11.8" | edge for quick recalibration |
| High frequency sub-pixel analysis delivers a 45x standard | • Taper angle tolerance AT1; no need for an external |
| optical magnification | caliper or master |
| Front light (episcopy) allows for the manual inspection | • Micron-precise glass scales and |
| of the tool tip/insert to detect wear or cracks | state-of-the-art guideways |
| Pneumatically activated spindle disc brake system | • Largest recirculating ball bearing contact |
| locks at any point in the 360º rotation | face in its class |
| One-Hand Rapid Axis Movement | Integrated Spindle with | X & Z-Axis Fine | Drawer for Integrated |
| Calibration Edge | Adjustment Hand Wheels | Adapter Support |
Customizable Work Station Setting the benchmark in ergonomics, the FUTURA's open spindle and cockpit controls are designed for worker safety and ease of use.
