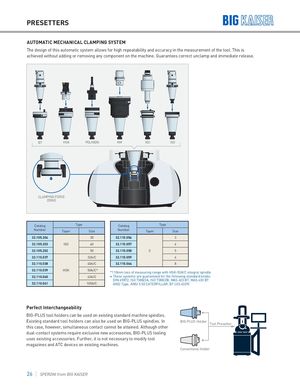

AUTOMATIC MECHANICAL CLAMPING SYSTEM
The design of this automatic system allows for high repeatability and accuracy in the measurement of the tool. This is
achieved without adding or removing any component on the machine. Guarantees correct unclamp and immediate release.
BT HSK POLYGON KM VDI ISO
CLAMPING FORCE 200KG
Catalog Type Catalog Type
| Number | Taper | Size | Number | Taper | Size | |
| 32.105.204 | 30 | 32.110.056 | 3 | |||
| 32.105.203 | ISO | 40 | 32.110.057 | 4 | ||
| 32.105.202 | 50 | 32.110.058 | C | 5 | ||
| 32.110.037 | 32A/C | 32.110.059 | 6 | |||
| 32.110.038 | 40A/C | 32.110.064 | 8 | |||
| 32.110.039 | HSK | 50A/C* | *110mm loss of measuring range with HSK-50A/C integral spindle | |||
| 32.110.040 | 63A/C | • These systems are guaranteed for the following standard knobs: | ||||
| DIN 69872, ISO 7388/2A, ISO 7388/2B, MAS 403 BT, MAS 403 BT | ||||||
| 32.110.041 | 100A/C | ANSI Type, ANSI 5.50 CATERPILLAR, BT (JIS 6339) |
Perfect Interchangeability
BIG-PLUS tool holders can be used on existing standard machine spindles.
Existing standard tool holders can also be used on BIG-PLUS spindles. In
this case, however, simultaneous contact cannot be attained. Although other
dual-contact systems require exclusive new accessories, BIG-PLUS tooling
uses existing accessories. Further, it is not necessary to modify tool
magazines and ATC devices on existing machines.
BIG-PLUS Holder Tool Presetter
Conventional Holder
