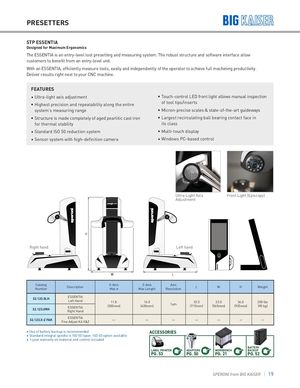

PRESETTERS STP ESSENTIA Designed for Maximum Ergonomics The ESSENTIA is an entry-level tool presetting and measuring system. The robust structure and software interface allow customers to benefit from an entry-level unit. With an ESSENTIA, efficiently measure tools, easily and independently of the operator to achieve full machining productivity. Deliver results right next to your CNC machine. FEATURES • Ultra-light axis adjustment • Touch-control LED front light allows manual inspection • Highest precision and repeatability along the entire of tool tips/inserts system’s measuring range • Micron-precise scales & state-of-the-art guideways • Structure is made completely of aged pearlitic cast iron • Largest recirculating ball bearing contact face in for thermal stability its class • Standard ISO 50 reduction system • Multi-touch display • Sensor system with high-definition camera • Windows PC-based control Ultra-Light Axis Front Light (Episcopy) Adjustment H Right hand Left hand W L Catalog X-Axis Z-Axis Axis Description L W H Weight Number Max ø Max Length Resolution ESSENTIA 32.123.0LH Left Hand 11.8 16.0 33.5 23.0 36.0 200 lbs 1µm ESSENTIA (300mm) (400mm) (715mm) (565mm) (935mm) (90 kg) 32.123.0RH Right Hand ESSENTIA 32.123.X-Z FAK — — — — — — — Fine Adjust Kit X&Z • Use of battery backup is recommended ACCESSORIES • Standard integral spindle is ISO 50 taper; ISO 40 option available • 1-year warranty on material and control included BATTERY LABEL PRINTER ADAPTERS WORKBENCH BACKUP PG. 53 PG. 50 PG. 21 PG. 52 SPERONI from BIG KAISER 19
