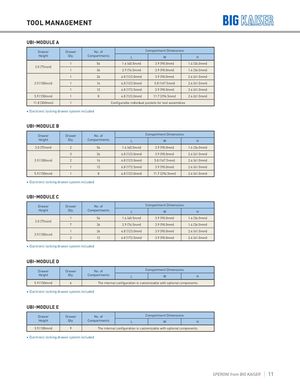

UBI-MODULE A

Drawer	Drawer	No. of	C	ompartment Dimension	s
Height	Qty.	Compartments	L	W	H
30 (7)	1	54	1.6 (40.5mm)	3.9 (98.0mm)	1.4 (36.0mm)
. 5mm	1	36	2.9 (74.5mm)	3.9 (98.0mm)	1.4 (36.0mm)
	1	24	4.8 (123.0mm)	3.9 (98.0mm)	2.4 (61.0mm)
3.9 (100mm)	1	16	4.8 (123.0mm)	5.8 (147.5mm)	2.4 (61.0mm)
	1	12	6.8 (172.5mm)	3.9 (98.0mm)	2.4 (61.0mm)
5.9 (150mm)	1	8	4.8 (123.0mm)	11.7 (296.5mm)	2.4 (61.0mm)
11.8 (300mm)	1	Co	nfigurable individual po	ckets for tool assembl	ies

Electronic locking drawer system included

UBI-MODULE B

Drawer	Drawer	No. of	C	ompartment Dimension	s
Height	Qty.	Compartments	L	W	H
3.0 (75mm)	2	54	1.6 (40.5mm)	3.9 (98.0mm)	1.4 (36.0mm)
	3	24	4.8 (123.0mm)	3.9 (98.0mm)	2.4 (61.0mm)
3.9 (100mm)	2	16	4.8 (123.0mm)	5.8 (147.5mm)	2.4 (61.0mm)
	1	12	6.8 (172.5mm)	3.9 (98.0mm)	2.4 (61.0mm)
5.9 (150mm)	1	8	4.8 (123.0mm)	11.7 (296.5mm)	2.4 (61.0mm)

Electronic locking drawer system included

UBI-MODULE C

Drawer	Drawer	No. of	Co	mpartment Dimensio	ns
Height	Qty.	Compartments	L	W	H
	1	54	1.6 (40.5mm)	3.9 (98.0mm)	1.4 (36.0mm)
3.0 (75mm)	7	36	2.9 (74.5mm)	3.9 (98.0mm)	1.4 (36.0mm)
	1	24	4.8 (123.0mm)	3.9 (98.0mm)	2.4 (61.0mm)
3.9 (100mm)	2	12	6.8 (172.5mm)	3.9 (98.0mm)	2.4 (61.0mm)

Electronic locking drawer system included

UBI-MODULE D

Drawer Drawer No. of Compartment Dimensions

Height Qty. Compartments L W H

5.9 (150mm) 6 The internal configuration is customizable with optional components.

Electronic locking drawer system included

UBI-MODULE E

Drawer Height	Drawer Qty.	No. of Compartments	Compartment Dimensions L W H
3.9 (100mm)	9	The internal	configuration is customizable with optional components.

Electronic locking drawer system included
