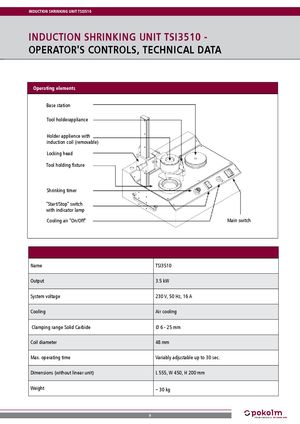

Термоусадочные машины Pokolm серии TSI 3510
OPERaTOR'S CONTROLS, TECHNICaL daTa
Operating elements
Base station Tool holderappliance Holder applience with induction coil (removable) locking head Tool holding fixture
Shrinking timer "Start/Stop" switch with indicator lamp Cooling air "on/off" main switch
| Name | TSI3510 |
| output | 3.5 kW |
| System voltage | 230 V, 50 Hz, 16 A |
| Cooling | Air cooling |
| Clamping range Solid Carbide | Ø 6 - 25 mm |
| Coil diameter | 48 mm |
| max. operating time | Variably adjustable up to 30 sec. |
| Dimensions (without linear unit) | l 555, W 450, H 200 mm |
| Weight | ~30 kg |
