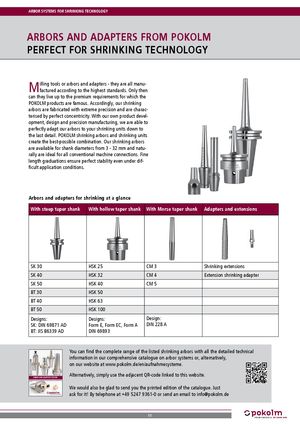

aRbOR SYSTEmS fOR SHRINKING TECHNOLOGY

aRbORS aNd adaPTERS fROm POKOLm

PERfECT fOR SHRINKING TECHNOLOGY

milling tools or arbors and adapters - they are all manu-

factured according to the highest standards. only then can they live up to the premium requirements for which the Pokolm products are famous. Accordingly, our shrinking arbors are fabricated with extreme precision and are characterised by perfect concentricity. With our own product development, design and precision manufacturing, we are able to perfectly adapt our arbors to your shrinking units down to the last detail. Pokolm shrinking arbors and shrinking units create the best-possible combination. our shrinking arbors are available for shank diameters from 3 - 32 mm and naturally are ideal for all conventional machine connections. Fine length graduations ensure perfect stability even under difficult application conditions.

arbors and adapters for shrinking at a glance

With steep taper shankWith hollow taper shankWith morse taper shankadapters and extensions
Sk 30HSk 25Cm 3Shrinking extensions
Sk 40HSk 32Cm 4Extension shrinking adapter
Sk 50HSk 40Cm 5
BT 30HSk 50
BT 40HSk 63
BT 50HSk 100
Designs: Sk: DIN 69871 AD BT: JIS B6339 ADDesigns: Form E, Form EC, Form A DIN 69893Design: DIN 228 A

aRbOR aNd adaPTER SYSTEmSAUFNAHMESYSTEME Werkzeugsysteme und Anwendungsberatung für die Zerspanung komplexer 2,5 und 3D-Geometrien

Titelseite Aufnahmen 2016.indd 1 25.02.16 13:15

You can find the complete range of the listed shrinking arbors with all the detailed technical information in our comprehensive catalogue on arbor systems or, alternatively, on our website at www.pokolm.de/en/aufnahmesysteme. Alternatively, simply use the adjacent QR-code linked to this website. We would also be glad to send you the printed edition of the catalogue. Just ask for it! By telephone at +49 5247 9361-0 or send an email to info@pokolm.de
