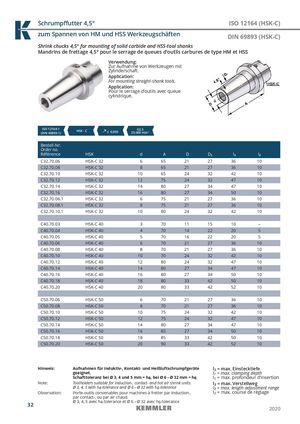

Schrumpff utter 4,5° ISO 12164 (HSK-C)
zum Spannen von HM und HSS Werkzeugschäften DIN 69893 (HSK-C)
Shrink chucks 4,5° for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage 4,5° pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application: For mounting straight-shank tools.
Application: Pour le serrage d’outils avec queue cylindrique.
ISO 12164-1 G2,5
HSK - C ≤ 0,003 25.000 min
(DIN 69893-1) -1
| Bestell-Nr. Order no. Référence | HSK | d | A | D | D1 | l1 | l2 |
| C32.70.06 | HSK-C 32 | 6 | 65 | 21 | 27 | 36 | 10 |
| C32.70.08 | HSK-C 32 | 8 | 65 | 21 | 27 | 36 | 10 |
| C32.70.10 | HSK-C 32 | 10 | 65 | 24 | 32 | 42 | 10 |
| C32.70.12 | HSK-C 32 | 12 | 75 | 24 | 32 | 47 | 10 |
| C32.70.14 | HSK-C 32 | 14 | 80 | 27 | 34 | 47 | 10 |
| C32.70.16 | HSK-C 32 | 16 | 80 | 27 | 34 | 50 | 10 |
| C32.70.06.1 | HSK-C 32 | 6 | 75 | 21 | 27 | 36 | 10 |
| C32.70.08.1 | HSK-C 32 | 8 | 75 | 21 | 27 | 36 | 10 |
| C32.70.10.1 | HSK-C 32 | 10 | 80 | 24 | 32 | 42 | 10 |
| C40.70.03 | HSK-C 40 | 3 | 70 | 11 | 15 | 10 | – |
| C40.70.04 | HSK-C 40 | 4 | 70 | 14 | 22 | 20 | 5 |
| C40.70.05 | HSK-C 40 | 5 | 70 | 16 | 22 | 20 | 5 |
| C40.70.06 | HSK-C 40 | 6 | 70 | 21 | 27 | 36 | 10 |
| C40.70.08 | HSK-C 40 | 8 | 70 | 21 | 27 | 36 | 10 |
| C40.70.10 | HSK-C 40 | 10 | 70 | 24 | 32 | 42 | 10 |
| C40.70.12 | HSK-C 40 | 12 | 80 | 24 | 32 | 47 | 10 |
| C40.70.14 | HSK-C 40 | 14 | 80 | 27 | 34 | 47 | 10 |
| C40.70.16 | HSK-C 40 | 16 | 80 | 27 | 34 | 50 | 10 |
| C40.70.18 | HSK-C 40 | 18 | 80 | 33 | 42 | 50 | 10 |
| C40.70.20 | HSK-C 40 | 20 | 80 | 33 | 42 | 52 | 10 |
| C50.70.06 | HSK-C 50 | 6 | 70 | 21 | 27 | 36 | 10 |
| C50.70.08 | HSK-C 50 | 8 | 70 | 21 | 27 | 36 | 10 |
| C50.70.10 | HSK-C 50 | 10 | 75 | 24 | 32 | 42 | 10 |
| C50.70.12 | HSK-C 50 | 12 | 75 | 24 | 32 | 47 | 10 |
| C50.70.14 | HSK-C 50 | 14 | 80 | 27 | 34 | 47 | 10 |
| C50.70.16 | HSK-C 50 | 16 | 85 | 27 | 34 | 50 | 10 |
| C50.70.18 | HSK-C 50 | 18 | 85 | 33 | 42 | 50 | 10 |
| C50.70.20 | HSK-C 50 | 20 | 90 | 33 | 42 | 52 | 10 |
Hinweis: Aufnahmen für Induktiv-, Kontakt- und Heißluftschrumpfgeräte l = max. Einstecktiefe geeignet. l1 = max. clamping depth l1 = max. profondeur d’insertion Schafttoleranz bei Ø 3, 4 und 5 mm = h4, bei Ø 6 – Ø 32 mm = h6 1
Note: Toolholders suitable for induction-, contact- and hot air shrink units. l = max. Verstellweg
Ø 3, 4, 5 with h4-tolerance and Ø 6 – Ø 32 with h6-tolerance l2 = max. length adjustment range l2 = max. course de réglage Observation: Porte-outils convenables pour machines à fretter par induction-, par contact-, ou par air chaud.
