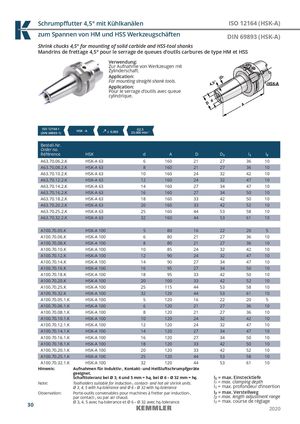

Schrumpff utter 4,5° mit Kühlkanälen ISO 12164 (HSK-A)
Shrink chucks 4,5° for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage 4,5° pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application: For mounting straight-shank tools.
Application: Pour le serrage d’outils avec queue cylindrique.
ISO 12164-1 G2,5
HSK - A ≤ 0,003 25.000 min
(DIN 69893-1) -1
| Bestell-Nr. Order no. Référence | HSK d | A | D | D1 | l1 | l2 |
| A63.70.06.2.K | HSK-A 63 6 | 160 | 21 | 27 | 36 | 10 |
| A63.70.08.2.K | HSK-A 63 8 | 160 | 21 | 27 | 36 | 10 |
| A63.70.10.2.K | HSK-A 63 10 | 160 | 24 | 32 | 42 | 10 |
| A63.70.12.2.K | HSK-A 63 12 | 160 | 24 | 32 | 47 | 10 |
| A63.70.14.2.K | HSK-A 63 14 | 160 | 27 | 34 | 47 | 10 |
| A63.70.16.2.K | HSK-A 63 16 | 160 | 27 | 34 | 50 | 10 |
| A63.70.18.2.K | HSK-A 63 18 | 160 | 33 | 42 | 50 | 10 |
| A63.70.20.2.K | HSK-A 63 20 | 160 | 33 | 42 | 52 | 10 |
| A63.70.25.2.K | HSK-A 63 25 | 160 | 44 | 53 | 58 | 10 |
| A63.70.32.2.K | HSK-A 63 32 | 160 | 44 | 53 | 61 | 10 |
| A100.70.05.K | HSK-A 100 5 | 80 | 16 | 22 | 20 | 5 |
| A100.70.06.K | HSK-A 100 6 | 80 | 21 | 27 | 36 | 10 |
| A100.70.08.K | HSK-A 100 8 | 80 | 21 | 27 | 36 | 10 |
| A100.70.10.K | HSK-A 100 10 | 85 | 24 | 32 | 42 | 10 |
| A100.70.12.K | HSK-A 100 12 | 90 | 24 | 32 | 47 | 10 |
| A100.70.14.K | HSK-A 100 14 | 90 | 27 | 34 | 47 | 10 |
| A100.70.16.K | HSK-A 100 16 | 95 | 27 | 34 | 50 | 10 |
| A100.70.18.K | HSK-A 100 18 | 95 | 33 | 42 | 50 | 10 |
| A100.70.20.K | HSK-A 100 20 | 100 | 33 | 42 | 52 | 10 |
| A100.70.25.K | HSK-A 100 25 | 115 | 44 | 53 | 58 | 10 |
| A100.70.32.K | HSK-A 100 32 | 120 | 44 | 53 | 61 | 10 |
| A100.70.05.1.K | HSK-A 100 5 | 120 | 16 | 22 | 20 | 5 |
| A100.70.06.1.K | HSK-A 100 6 | 120 | 21 | 27 | 36 | 10 |
| A100.70.08.1.K | HSK-A 100 8 | 120 | 21 | 27 | 36 | 10 |
| A100.70.10.1.K | HSK-A 100 10 | 120 | 24 | 32 | 42 | 10 |
| A100.70.12.1.K | HSK-A 100 12 | 120 | 24 | 32 | 47 | 10 |
| A100.70.14.1.K | HSK-A 100 14 | 120 | 27 | 34 | 47 | 10 |
| A100.70.16.1.K | HSK-A 100 16 | 120 | 27 | 34 | 50 | 10 |
| A100.70.18.1.K | HSK-A 100 18 | 120 | 33 | 42 | 50 | 10 |
| A100.70.20.1.K | HSK-A 100 20 | 120 | 33 | 42 | 52 | 10 |
| A100.70.25.1.K | HSK-A 100 25 | 120 | 44 | 53 | 58 | 10 |
| A100.70.32.1.K | HSK-A 100 32 | 120 | 44 | 53 | 61 | 10 |
| Hinweis: Note: | Aufnahmen für Induktiv-, Kontakt- und H geeignet. Schafttoleranz bei Ø 3, 4 und 5 mm = h4, b Toolholders suitable for induction-, contact- and Ø 3, 4, 5 with h4-tolerance and Ø 6 – Ø 32 with | eißluftschrumpfge ei Ø 6 – Ø 32 mm = hot air shrink units. h6-tolerance | räte h6 | l1 = max. E l1 = max. cl l1= max. p | instecktiefe amping depth rofondeur d’i | nse |
| Observation: | Porte-outils convenables pour machines à fre par contact-, ou par air chaud. Ø 3, 4, 5 avec h4-tolerance et Ø 6 – Ø 32 avec | tter par induction-, h6-tolerance | l2 = max. V l2 = max. le l2= max. c | erstellweg ngth adjustm ourse de régl | ent age |
