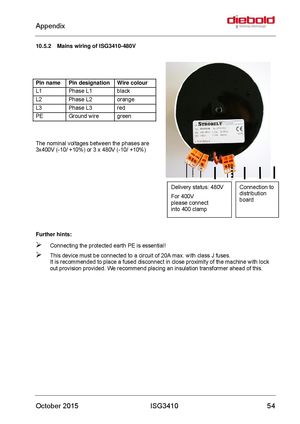

10.5.2 Mains wiring of ISG3410-480V
| Pin name | Pin designation | Wire colour |
| L1 | Phase L1 | black |
| L2 | Phase L2 | orange |
| L3 | Phase L3 | red |
| PE | Ground wire | green |
The nominal voltages between the phases are 3x400V (-10/ +10%) or 3 x 480V (-10/ +10%)
Delivery status: 480V For 400V please connect into 400 clamp
Connection to distribution board
Further hints:
- Connecting the protected earth PE is essential!
- This device must be connected to a circuit of 20A max. with class J fuses. It is recommended to place a fused disconnect in close proximity of the machine with lock out provision provided. We recommend placing an insulation transformer ahead of this.
