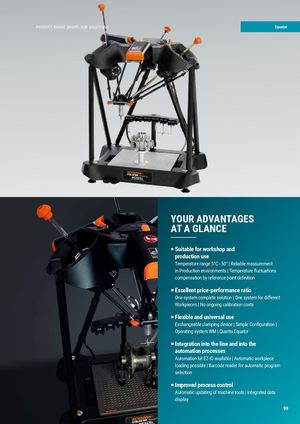

Equator

Renishaw Equator

POWERED BY WENZEL

In the past, various measuring instruments were usedcorrections to the process for specific manufacturing
to control manufacturing processes, e.g. Calipers, processes. By checking at more frequent intervals, the
go/no-go gauges or bore gauges were used. Thefollowing occurs; A fast reaction to possible process
Equator Gauge combines these measurements in onefluctuations. Almost independent of the production
device. This independent inspection system offersenvironment, constant accuracy can be guaranteed in
a good repeatable accuracy at an appropriate speed,a temperature range from 5°C to 50°C at a humidity
with light weight and a high operability for manual andof 80%. The system is designed for ease of use, cost
automated applications in production. For direct qual-reduction and improved process control through an
ity assurance in the process, the Equator enables timelyappropriate test system concept.

FEATURES P 100 % testing at low cost P Increase measurement throughput & reduce labor costs through automation solution with Equator tester P Reduce scrap with real-time process monitoring functionality

P Short cycle times due to versatility & high operating speed P Versatile due to high temperature range & many confi guration options

APPLICATION AREAS

The Renishaw Equator powered by WENZEL is used wherever gauges, measuring rings, etc.have been used until now. By previous production of a master part on a CMM, in connection with the Equator, almost 100 % inspection of the manufactured components can be realized in time with the production cycle. Therefore you don’t even have to change the software, both the CMM and the Equator work with WM | Quartis from WENZEL. By loading measurement programs on the PC of the Equator, it is possible to select the corresponding program previously created on the CMM.

PRODUCT RANGE SHOPFLOOR SOLUTIONS

Equator

YOUR ADVANTAGES

AT A GLANCE

P Suitable for workshop and

production use

Temperature range 5°C - 50° | Reliable measurement in Production environments | Temperature fl uctuations compensation by reference point defi nition

Excellent price-performance ratio

P

One-system complete solution | One system for different Workpieces | No ongoing calibration costs

P Flexible and universal use

Exchangeable clamping device | Simple Confi guration | Operating system WM | Quartis Equator

P Integration into the line and into the

automation processes

Automation kit EZ-IO available | Automatic workpiece loading possible | Barcode reader for automatic program selection

P Improved process control

Automatic updating of machine tools | Integrated data display
